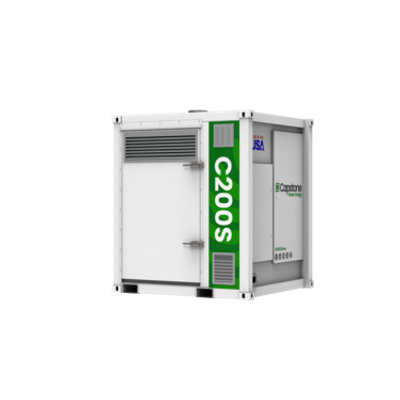

Model C200S -Microturbine

Rating: 200 kw Electrical. Electrical Efficiency LHV: 33%. Combined Heat And Power Efficiency: Up to 90%. Voltage: 400-480 VAC. Frequency: 50/60 Hz, Grid Connect. Electrical Service: 3-Phase, 4-Wire Wye. Width: 3.0 m (117 in). Depth: 2.5 m (100 in). Height: 3.03 m (119 in). Weight: Grid Connect – 5,200 kg (11,400 lbs); Dual Mode – 5,850 kg (12,900 lbs). Net Heat Rate LHV: 10.9 MJ/kWh (10,300 BTU/kWh). Exhaust Temperature: 280 ºC (535ºF). Exhaust Gas Flow: 1.3 kg/s (2.9 lbm/s). Compatible Fuels: Pipeline Natural Gas, Biogas (Landfill, Digester), Raw Natural Gas (Sour, Associated Gas).
