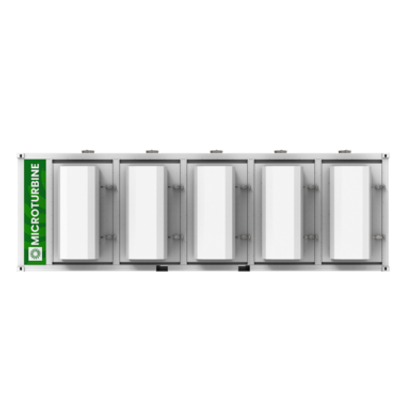

Model C1000S -Microturbine

Rating: 1,000 kW. Electrical Efficiency LHV: 33%. Combined Heat And Power Efficiency: Up to 90%. Voltage: 400-480 VAC. Frequency: 50/60 Hz. Electrical Service: 3-Phase, 4-Wire Wye. Width: 3.0 m (117 in). Depth: 9.1 m (360 in). Height: 3.03 m (119 in). Weight: Grid Connect – 17,100 kg (37,700 lbs); Dual Mode – 20,650 kg (45,500 lbs). Net Heat Rate LHV: 10.9 MJ/kWh (10,300 BTU/kWh). Exhaust Temperature: 280 ºC (535ºF). Exhaust Gas Flow: 6.7 kg/s (14.7 lbm/s). Compatible Fuels: Pipeline Natural Gas, Biogas (Landfill, Digester), LPG, Raw Natural Gas (Sour, Associated Gas).
