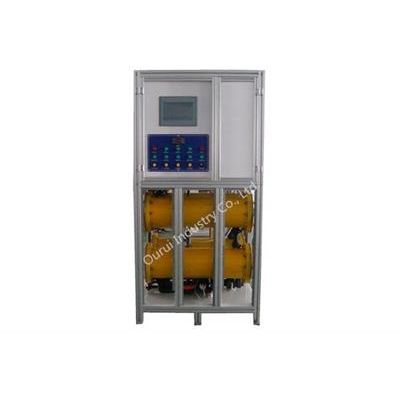

Ourui - Middle & Large Size Generation System

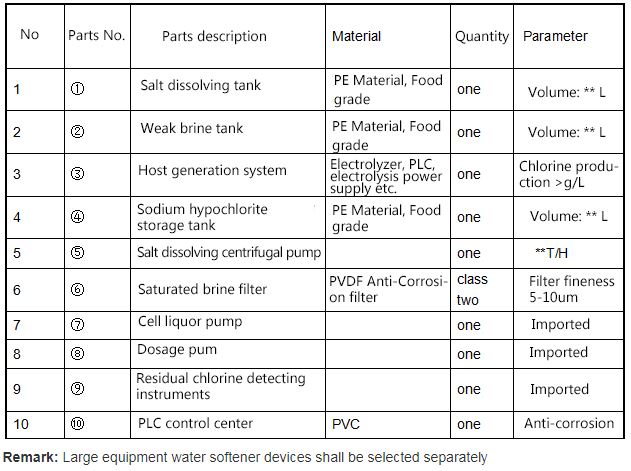

System configuration: Auto salt dissolving tank、Auto salt filtration 、Auto saturated weak brine tank、 Auto weak brine proportioning device、 weak brine tank、 Weak brine deliver metering pump、Host generation system、 Sodium hypochlorite storage tank、Auto control system、 Auto sodium hypochlorite anti-corrosion metering pump 、Residual chlorine detecting (Optional)、Residual chlorine closed-loop feedback type automatic control unit .
Most popular related searches
sodium hypochlorite storage tank
sodium hypochlorite storage
drinking water disinfection
brine tank
residual chlorine
sodium hypochlorite
metering pump
brine concentrator
brine concentration
corrosion meter
Material: Brine or seawater, brine concentration: 2.5% ~ 3.0%.
It is used for drinking water disinfect, raw material inspection should comply with the national standard 《GB2721Hygienic standard for salt》.
Systematic parameter
- Input voltage：380VAC/ 50Hz with grounding
- Operating voltage: single electrode11～14VDC
- Operating current: 100～150.0ADC
- Chlorine production：≥500g/h～50kg/h
- Available chlorine content：≥5000ppm(the finished liquid)
- Electrolyte: 2.5%～3.0% weak brine
- Dc power consumption：≤3.5KWh/KgCL
