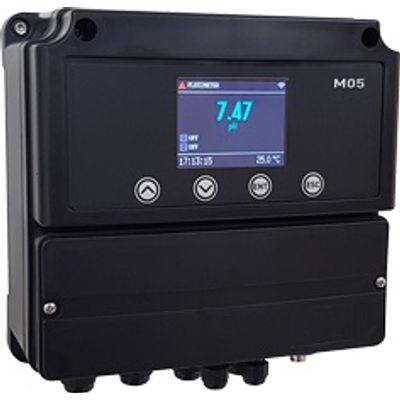

MICON - Model M05S -Middle Range Control Instrument
FromMICON S.R.L.
Version with single size. Easy setting with 4 front buttons and the large display, showing the measurement in real time, always shows the situation of the relays and alarms. Prepared for WIFI connection, to be managed remotely by MRemote app.
Most popular related searches
- TFT colour graphic display
- Single measure plus temperature
- 2 Relay outputs for each measure plus (free contact)
- 1 Alarm output (free contact)
- 1 Analog 4-20mA output for each measure
- 1 Levels input
- 1 fluximeter sensor input
- Multilanguage menu
- Wifi connnection(2.4 GHz) (Optional )
- Server cloud for remote control
- Android and Apple Ios Application
- pH
- Redox (ORP)
- Chlorine
- Oxygen
- Turbidity
- Conductivity
- Temperature
- Flow rate
|
Type
|
Range
|
Resolution
|
|
M05S-PH
|
0-14.00 pH
|
± 0.01 ph
|
|
M05S-RX
|
0-2000 mV
|
± 1mV
|
|
M05S-CL
|
0-20.00 ppm
|
± 0.01 ppm
|
|
M05S-CD
|
0-200.0 uS
0-2000 uS
0-20.00 mS
0-200.00 mS
|
± 1% f.s.
|
|
M05S-TB (Turbidity)
|
0-20 NTU
0-200 NTU
0-1000 NTU
|
± 1% f.s
|
|
M05S-OXY
(Oxygen)
|
0-20.00 mg/l O2
|
± 0.1 mg/l
|
|
M05-TEMP (Temperature)
|
0-100 °C
|
± 0.1 °C
|
