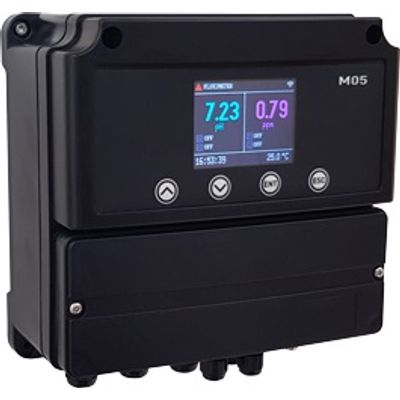

MICON - Model M05D -Middle Range Control Instrument
FromMICON S.R.L.
Version with double measuring channel. Easy setting with 4 front buttons and the large display, showing the measurement in real time, always shows the situation of the relays and alarms. Prepared for WIFI connection, to be managed remotely by MRemote app.
Most popular related searches
pH/redox
chlorination
pH/ORP/conductivity
ORP/redox
color measurement
level monitoring
temperature monitoring
- TFT colour graphic display
- Double measure plus temperature
- 4 Relay outputs, two for channel (free contact)
- 1 Alarm output (free contact)
- 2 Analog 4-20mA output for each measure
- 2 Levels input
- 1 fluximeter sensor input
- Multilanguage menu
- Wifi connnection(2.4 GHz) (Optional )
- Server cloud for remote control
- Android and Apple Ios Application
- pH
- Redox (ORP)
- Chlorine
- Oxygen
- Conductivity
- Temperature
|
Type
|
Range
|
Resolution
|
|
M05D-PHRX
|
0-14.00 pH/0-2000 mV
0-100 °C
|
± 0.01 ph
± 1mV
|
|
M05D-PHCL (pH-Chlorine)
|
0-14.00 pH/0-20.00 ppm
0-100 °C
|
± 0.01 ph
± 0.01 ppm
|
|
M05D-PHCD (pH-Conductivity)
|
0-14.00 pH/0-200.0 uS
0-14.00 pH/0-2000 uS
0-14.00 pH/0-20.00 mS
0-14.00 pH/0-200.00 mS
|
± 1% f.s.
|
|
M05S-PH OXY (pH-Oxygen)
|
0-14.00 pH/0-20.00 mg/l O2
0-100 °C
|
± 0.1 mg/l
|
