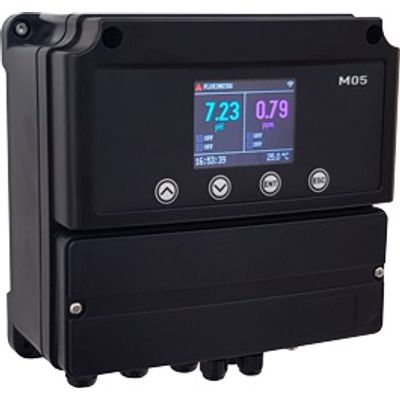

MICON - Model M05 CT -Middle Range Control Instrument
FromMICON S.R.L.
The M05 CT is specifically designed for Cooling Tower applications. The instrument controls the solenoid purge, the pump inhibitor and two pumps for Biocide. The contoller integrates a real time clock-calendar which allows the Biocide dosing programming in daily, weekly or monthly way. Versions with ph and conductivity measure or redox and conductivity measure are both available.
Most popular related searches
cooling tower application
conductivity monitoring
bleed valve
biocide dosing
water metering
cooling tower
pump controller
flow control
water meter
water flow control
- TFT colour graphic display
- pH/conductivity/°C or Redox/Conductivity/°C measure
- Bleed valve discharge control
- 1 Feed inhibitor and 2 biocide pumps control
- 2 levels and 1 fluximeter control
- Water meter flow control
- Real Time Clock calendar
- Mutilanguage menu
- Wifi connection (2.4 GHz) (Optional)
- Cloud server connnection with Android/Ios
- Application for remote control
- pH/conductivity/°C
- Redox/Conductivity/°C
- Conductivity/°C
|
Modello
|
Range
|
Risoluzione
|
|
M05CT-PHCD (pH-Conducibilità)
|
0-14.00 pH/0-20.00 mS
0-100 °C
|
± 0.01 ph
± 1% f.s.
|
|
M05CT-RXCD (RX-Conducibilità)
|
0-2000mV/0-20.00 mS
0-100 °C
|
± 1mV
± 1% f.s.
|
|
M05CT-CD (Conducibilità)
|
0-20.00mS /0-100 °C
|
± 1% f.s.
|
