F&J - Mini-Calibrator Battery Powered Basic Line Power Models

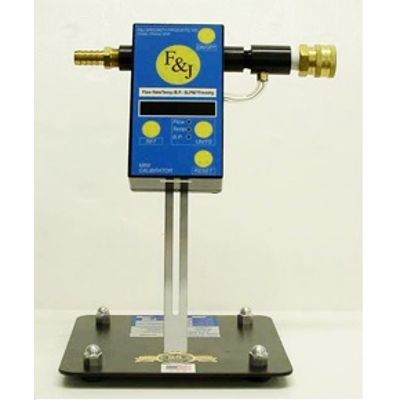

The F&J Mini-Calibrator is a small, lightweight microprocessor controlled instrument with sophisticated electronics that measures and displays flow rate corrected to a reference T and P, barometric pressure and air flow temperature. The Mini-Calibrator, which is an exclusive F&J design, is a direct reading instrument utilizing a bright LED with large characters that are easily viewed by an operator. A NIST traceable calibration certificate is issued with each calibrator. The operator may select from a reference T and P flow standard or ambient T and P conditions. The Mini-Calibrator can be utilized as a handheld unit for field calibrations or temporarily mounted in a variety of methods without requiring a level position. The optional hose barb fittings (additional cost) permit easy connection to the air samplers utilizing flexible tubing.

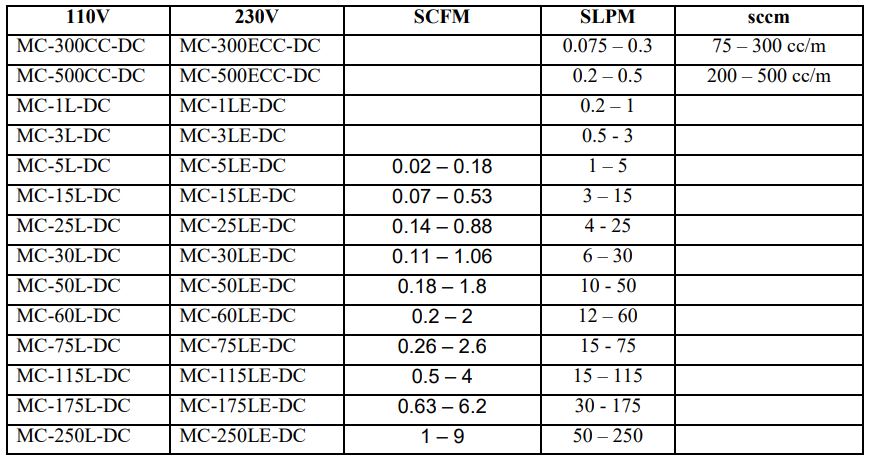

- Various Flow Ranges Available
- Lightweight; 8 oz. (227 gms)
- Small Footprint
- Adjustable Height
- Flow rate displayed are corrected to an operator settable Reference Temperature and Pressure
- Options Available:
- Temperature
- 20ºC
- 70ºF
- 25ºC
- Pressure Options Available
- 1 Atm
- 1 Bar
- Flow rates displayed can also be corrected to the local ambient conditions of T and P by the operator
- Displays Airflow Temperature
- Displays Barometric Pressure
- Bright LED with large characters
- Operator Selectable Ambient Flow or Standard Flow
- Two cell lithium battery pack; 7.4V/1.4Ah
- Three color LED to show battery capacity
- AC to DC power adaptor for battery charging
- English or Metric Engineering Units (set at factory) Selection:
- Flow
- SCFM
- sccm
- SLPM
- SCMH
- Temperature
- °F
- ºC
- Barometric Pressure
- Inches Hg
- mmHg
- kPa
- Bar
- Power Requirements: 110 or 230VAC; 47-63 Hz; 0.1 amp maximum
- Operating Temperature: 40-104 Degree F (4-40 Degree C)
- Storage Temperature: 22-158 Degree F (-5-70 Degree C)
- Dimension (L×W×H): 3.25” × 2.50” × 2.00” (82,6 mm × 140 mm × 50,8 mm)
- Weight: 8 ounces (227 g)
Parameter: Engineering Unit
- CFM: Cubic feet per minute
- LPM: Liter per minute
- M3/hr: Cubic meter per hour
- F: Degree Fahrenheit
- C: Degree Celsius
- In-Hg: Inches of Mercury
- mm-Hg: Millimeters of Mercury
Measurement Accuracy
- Air Flow: ± 2.0% of full scale
- Temperature (Typical): ± 2ºF (1.1ºC)
- Barometric Pressure: ± 2% over measurement range
Options (Additional Cost)
- RS-232 interface, including cable
- All measured and calculated parameters are accessible through RS-232 port to a computer

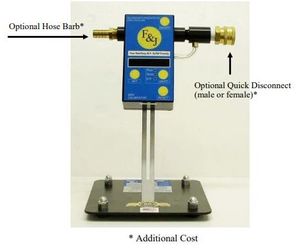

- Hose barb or quick disconnect fittings
Calibration
- Factory calibration is recommended once per year.
