Mini-Capsule Filters
Mini-Capsule filters are ideal for bench scale process development and small volume applications. Critical Process Filtration`s Mini-Capsule filters, made with the same high standards and materials as our larger capsule filters deliver the performance you require and protect users from exposure to the process stream and protect fluids from environmental contaminants. Most CPF Mini-Capsules are available pre-sterilized by gamma irradiation. CPF Mini-Capsules are designed to provide outstanding performance and ease of use. Depending on fluid volume and application, Mini-Capsules are industrious filters intended for both lab and production environments.

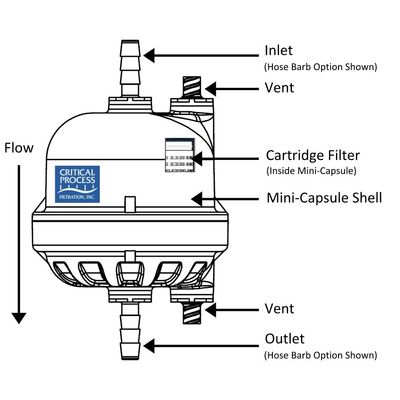

Mini-Capsules are devised to work in your environment so you don’t need to change your current setup or equipment. Their double-vent design enables them to be positioned in any direction or fit in tight spaces without impacting flow. Simply attach your input and output tubing according to the flow arrow and position the filter in any direction. To release air pressure, use whichever vent is most accessible. Depending on how you position the Mini-Capsule, the vents can also be used to drain the fluid.
Media
- Depth Media - Polypropylene and Fiberglass
- Membrane - PES, Nylon 6,6, PVDF, PTFE
- PES and Nylon 6,6 positively charged
- Layering options
- Media choice
- Polypropylene (outer housing, cage, core, end caps)
- Sealed by thermal bonding
- Inlets, Outlets, Vents - see selections
- Body Length: 2.85 in. (7.2 cm)
- Overall Length: 3.75 to 5.19 in. (9.5 to 13.2 cm)
- Outside Diameter: 2.95 in. (7.5 cm)
- Autoclave: 250 °F, 30 min., 25+ cycles
- Chemical
