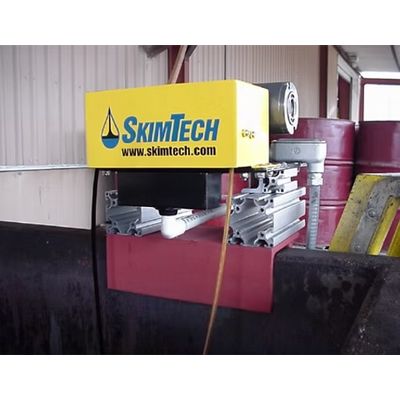

SkimTech - Model AG25 -Mini David Skimming System
Don’t let the name Mini David fool you. The only thing Mini about this oil skimmer is the amount of space it requires. It works as hard and effectively as it’s larger kin. The Model AG25 Oil Skimming System is designed to remove free-floating oils, grease and other material from the surface of water in indoor and outdoor applications where space is limited. It’s a specially designed to be more compact for smaller applications, or anywhere where space is a concern. This design makes it ideal for “tramp oil” removal from metal cutting machine (CNC machine) coolant reservoirs, central coolant systems, parts washers, waste water treatment oil/water equalization tanks, oil/water separators, and hundreds of other applications. We welcome your inquiry and will respond promptly.
Designed for applications where space is limited - parts washers, small oil/water pre-filtration equalization tanks and central coolant systems. Uses standard 1/4" TigerTube™ . Fast and easy “Tramp Oil” removal.
Built to last
- Lubed for life gear reducer, bearings, & sprockets
- Replaceable Dureon™ Drive and Pulley wear rings

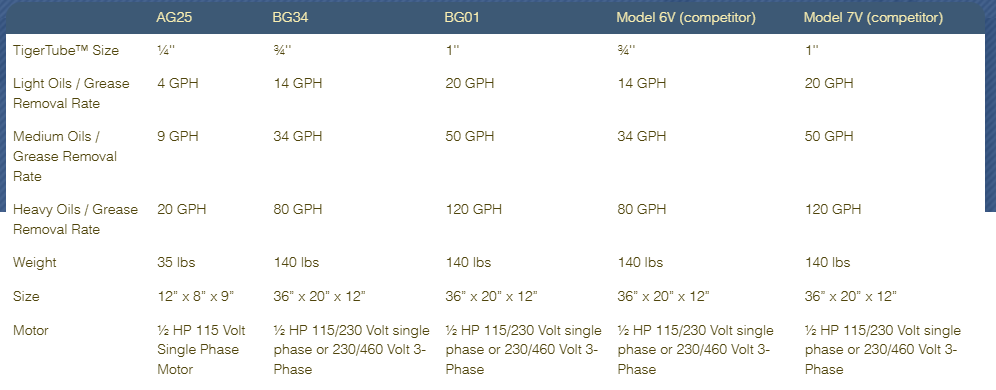

Quick Removal Rates
- Light Oils & Grease - 4 GPH
- Meduim Oils & Grease - 9 GPH
- Heavy Oils & Grease - 20 GPH
As Safe As They Come
- Safety guard with integral Dureon™ scrapers & pressure blocks.
- Quick connect and release Drive and Pulley Wheels.
Despite the compact design, you can expect the same reliability and quick removal rates. The Model AG25 Oil Skimmer uses a specially formulated ¼” diameter collector tube (TigerTube™) that is sized in length for the application and welded into a continuous loop. The ¼” TigerTube™ collector tube floats on the surface of water and is driven in a continuous loop by the skimmer. Oils, fats, and grease cling to the outside surface of the TigerTube™ and are drawn into the skimmer.
The materials drawn into the skimmer are scraped off the TigerTube™ by abrasive resistant scrapers (Dureon™ scrapers) and flow into a sludge pan. The clean side of the TigerTube™ collector tube is then driven back to the surface of the water by the skimmer to remove more material.
