Crepak - Model Yaka 30 -Mini RFID Tag

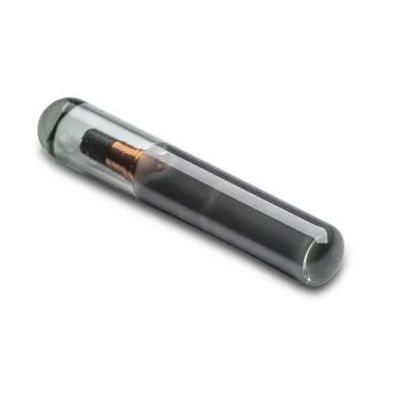

Yaka 30 is a Mini RFID Tag developed for industrial and animal identification applications, it is capsulated with a sealed glass tube, meets IP68 rating, is biocompatible and chemical resistance,  the chip is welded onto the antenna so that the tag is durable and is resistant to up to 140? temperature, the diameter of Yaka 20 is only φ2.12mm, suitable for very small assets and small animals, parylene coating can be added to prevent movement while implanted, Yaka 30 operates in low frequency, adaptive for all material including liquid and metals, it has 512 bit EEPROM memory which is applicable for universal application.

Yaka 30 features up to 5 centimeters reading distance by the fixed reader and carries more than 10 years lifecycle,  it can be easily attached to assets or animals via glue, implant, it is an ideal product for pets, livestock management, work in process management, automation, routine inspection management, etc

• Protected chip and bonding process ensures up to 140? high temperature
• Mini size enables ultra small animal/assets tracking
• Up to 5 centimeters reading range
• Multiple attaching methods including implant, embedded and glue
• Can be re-packaged to expand its application

Mechanical Specification
Material: Glass
Size: 2.12x12mm(φ0.08×0.47 in)
Weight: 0.4g/0.014OZ

RF Specification
Frequency: 134.2KHz
Protocol: ISO 11784/11785
Reading range: Up to 5cm
Chipset: EM4305
Memory: 512 bit EEPROM

Environment Specification
Operation temp: -40 – 85?
Store temp: -40 – 140?
Protection: IP68
Shock and vibration: TBD
Mounting way: Implant, embedded, glue
Certification: CE, ICAR
Warranty: 12 months after delivery
Lifecycle: More than 10 years

Applications

• Cat, dog, horse, livestock identification
• Work in process management
• Automation
• Routine inspection management

Part No.
EM4305: 1113111

Frequency: 134.2KHz
