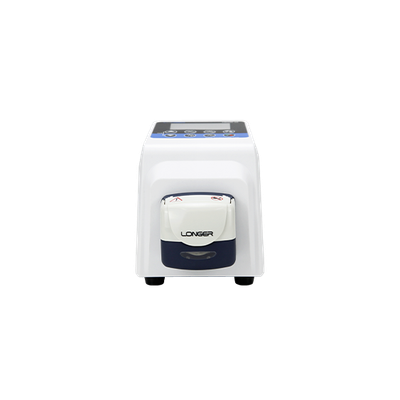

Longer - Model GM200-1A/GM400-1A -Mini Standard Peristaltic Pump
Mini Peristaltic Pump GM200-1A/GM400-1A compact size and structure,mounted with 4-roller pump head BPH01 for low pulsation and longer tubing life
Most popular related searches
- Compact size and structure
- Speed control 20,000:1 or 40,000:1
- Continuous and timer modes for different applications
- Keypad and footswitch control for local operation
- Variety of remote control options for easy system integration
- Low-noise design
- Mounted with 4-roller pump head BPH01 for low pulsation and longer tubing life
- Max Flow Rate (Single Channel) : 340mL/min
- Speed Range : 0-400rpm
- Speed Resolution : 0.01rpm (speed<10rpm);0.1rpm (10rpm≤speed<100rpm);1rpm(100rpm≤speed≤max)
- Display : LCD screen for pump speed,running direction,time,start/stop status,work mode and control mode
- Work Mode : Continuous or timer mode
- Control Mode : Keypad,footswitch,external signal or communication control
- Calibration : No
- External Control : Start/stop:switch signal,level trigger or pulse trigger Running direction control:switch signal,level trigger or pulse trigger Speed control:4-20mA/0-5V/0-10V/0-10kHz,The valid speed range can be configured through communication commands
- Communication Control : RS485 interface,Modbus RTU protocol and Longer OEM protocol
- Dimensions(L x W x H) : 220x115x135mm (including pump head)
- Power Supply : AC100-240V,50Hz-60Hz
- Operating Temperature : 0?-40?
- Relative Humidity : <80%
- IP Rating : IP31
- Weight : 1.35kg (including pump head)
