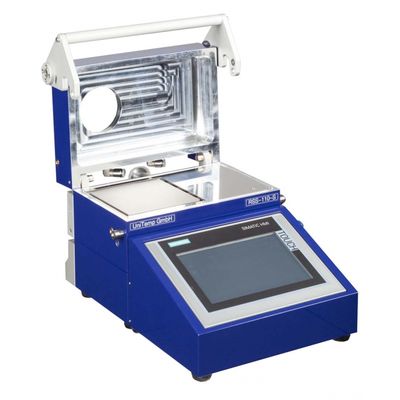

UniTemp - Model RSS-110-S -Mini Vacuum Reflow System
FromUniTemp GmbH
The RSS-110-S Reflow Solder System is a very compact and easy useable tool for the use in laboratories and clean rooms as table top unit. The chamber is vacuum sealed and equipped with a viewing window. This allows the view control of the soldering process. The unit is standard equipped with a Mass Flow Controller for the process gas. The heating plate is heated by heating cartridges and has a heated area with 110x110mm. It is made of aluminium. The excellent cooling rates are based on a water cooled chamber.
Most popular related searches
mass flow control
water cooling
cooling water
mass flow
flow control
flow meter
cleanroom
pressure sensor
process gas
mass flow metering
- flux-less soldering
- flip chip process
- adhesive bonding
- solder bump reflowing
- encapsulation of housings
- soldering of power devices
- heat treatment of semiconductor wafers
- prototype development
- quality control
- Max. substrate size: 110 x 110 mm
- Max. temperature: up to 400 °C, optionally up to 500 °C
- T° continious : 400 °C
- Ramp up rate: up to 120 K/Min.
- Ramp down rate: up to 180 K/Min.
- Substrate cooling: water cooled
- Chamber cooling: water cooled channels
- Vacuum : up to 10exp.-3 hPa, integrated pressure sensor
- Flow meter: Mass Flow Controller for Nitrogen and other inert gases
- Gases: Inert gases, other on request
- Controller: SIMATIC© with 7" Touch Panel
- Heating plate: Aluminium
- Chamber height inside: 40 mm, optionally 80 mm
- Programs: 50 programs saveable
- Formic acid module: 40ml vessel, to be filled manually
- Hydrogen module: on request
- USB Camera: Process viewing by USB camera system on top
- Dimension: 274 x 517 x 215 mm
- Weight: 14 kg (with option -EH: 16 kg)
- Power : 1 Phase, 230V, 50/60Hz or 100-115V or 200-208V
