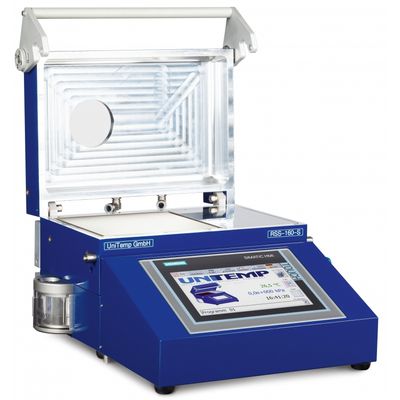

UniTemp - Model RSS-160-S -Mini Vacuum Reflow System
FromUniTemp GmbH
The RSS-160-S Reflow Solder System is a very compact and easy useable tool for the use in laboratories and clean rooms as table top unit. The chamber is vacuum sealed and equipped with a viewing window. This allows the view control of the soldering process. The unit is standard equipped with a Mass Flow Controller for the process gas. The heating plate is heated by heating cartridges and has a heated area with 160x160mm. It is made of aluminium. The excellent cooling rates are based on a water cooled chamber.Requires water cooling.
Most popular related searches
mass flow control
water cooling
cooling water
mass flow
flow control
flow meter
mass flow metering
cleanroom furniture
mass flow meter
cleanroom
- flux-less soldering
- flip chip process
- adhesive bonding
- solder bump reflowing
- encapsulation of housings
- soldering of power devices
- heat treatment of semiconductor wafers
- prototype development
- quality control
- Max. substrate size: 160 x 160 mm
- Max. temperature: up to 400 °C, optionally up to 500 °C
- T° continious : 400 °C
- Ramp up rate: 100 K/Min.
- Ramp down rate: up to 100 K/Min.
- Substrate cooling: water cooled
- Chamber cooling: water cooled channels
- Vacuum : up to 10exp.-3 hPa, integrated pressure sensor
- Flow meter: Mass Flow Controller for Nitrogen and other inert gases
- Gases: Inert gases, other on request
- Controller: SIMATIC© with 7" Touch Panel
- Heating plate: Aluminium
- Chamber height inside: 40mm, optionally 80 mm
- Programs: 50 programs saveable
- Formic acid module: 40ml vessel, to be filled manually
- Hydrogen module: on request
- USB Camera: Process viewing by USB camera system on top
- Dimension: 330x420x255 mm
- Weight: 20 kg
- Power : 1 Phase, 230V, 50/60Hz or 100-115V or 200-208V
