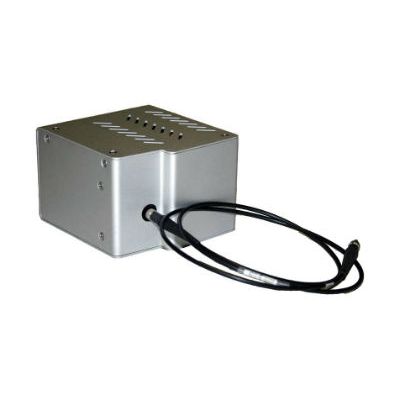

HORIBA - Model VS7000-CCD-HS -Miniature CCD Spectrometer

• Most popular UV-VIS range
• High readout speed
• Advanced electronics
• Back-illuminated linear CCD
• High signal-to-noise ratio
• USB 2.0 high and full-speed
• Order-sorting fi lter
• Windows acquisition softwareand LabVIEW™ VIs and DLLs available
• Sturdy single-optic design
• No moving parts or shutter

• Excellent peak symmetry in a miniature grating spectrometer
• 1.1 ms maximum readout speed (890 spectra/s)
• Low noise; high linearity (raw) and linearity-correction

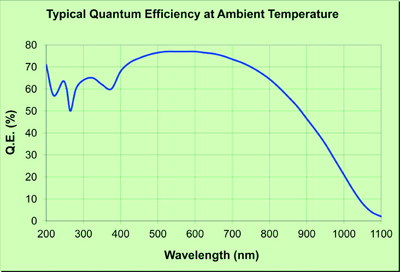

• QE = 63% at 250 nm; 76% at 650 nm; 55% at 850 nm
• Highest full well/signal-to-noise ratio of any uncooled CCD mini-spectrometer
• Standard connection interfaces to PCs with 100% data integrity
• Eliminates second-order interference
• Software to integrate VS-7000 as an OEM component
• Excellent light purity, with concave grating design
• Excellent reliability for OEM integration

Concave-grating mini-spectrometer for

• UV-VIS
• VIS
• UV-NIR

Acquisition Software included (LabVIEW 2011 only)

• VIs and top-level code are provided for customization
• Handles acquisition and signal-processing (smoothing, absorbance, transmittance, etc.)
• Save data to Excel or text file
• On-board spectral calibration
• Option to gain access to corrected linearity (done at factory for each chip)
• On-board or software averaging and pixel-binning

No LabVIEW license is needed to run our acquisition software. LabVIEW license ver. 2011 required to edit our code. No code customization supported in price.
