Aquestia - Mining Leaching Skid

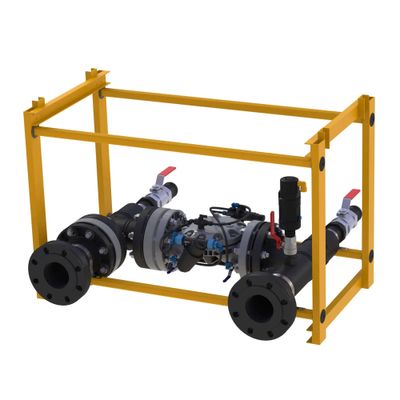

The Instrumentation & Control Leaching Skid is a portable self-contained unit, designed to be installed at each leaching module entrance to provide precise leaching rate control in the module, as well as the monitoring of the pressure/flow parameters during the leaching process. The Mining Leaching Skid helps increase ore recovery in the heap; optimizing the overall leaching process and maximizing unit production.
Self-contained unit
Quick and simple in-the-field installation
Strong, durable and light-weight frame, with built-in abrasion protection
Provides protection for internal components and is resilient to the toughest mining environments
Built-in Filter Screen
Protects the Control Valve - the most important component on the skid
Unique “flushing” feature
For easy maintenance on the filter screen, without removing it from the system
Accessibility
Convenient and portable, no need for specialized tools
Stackable, allows for efficient use of space
Custom configurations
Tailor made solutions for different needs
Size Unit: SI
- Size range: DN100 - DN150 (4” - 6”)
- Pressure rating
- Copper mining: PN6
- Gold mining: PN10
- End connection type: Flanges ANSI 150RF / ISO PN10/16
Imperial
- Size range: 4” - 6”
- Pressure rating:
- Copper mining: 90 psi
- Gold mining: 150 psi
- End connection type: Flanges ANSI 150RF / ISO PN10/16
