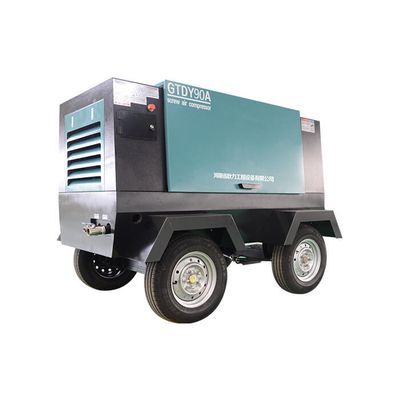

Model GLDY90A -Mobile Air Compressor

Easy operation, just press
Operation data like emission temperature, exhaust pressure, oil pressure, operation duration and voltage are shown.

Operator understands operation condition at real time, include operation status and failures.
Reliable European-standard key electrical control elements ensure stable operation, fine technology

Model: GLDY90A

• Exhaust volume: 16(m3/min)
• Exhaust power: 0.8MPa
• Noise value at one meter: 82±3dBA
• Outlet gas lubricating oil carry: 1~3PPM
• Lubricating oil quantity: 70L
• Cooling method: Air cooling
• Drive way: Direct drive
• Exit size: DN50

Electromotor

• Motor rotating speed: 2985rpm
• Motor power: 90Kw
• Motor protection level/Insulation : IP55F
• Voltage &Frequency: 380V/50Hz

Dimension

• long: 2305mm
• wide: 1660mm
• high: 1910mm
• Total weight: 1620kg
