Scandinavian & UK Machines (SUMAB)
158501 - Model E-12 -Mobile Concrete Block Machine

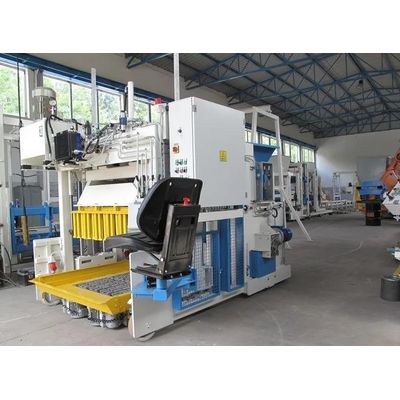

Special mobile block machine SUMAB E-12 production plant. “Egg-layer” type. Using special block machine SUMAB E-12 equipment is a budget solution for manufacturing of most concrete products: Hollow blocks, solid blocks, chimney blocks, hourdy blocks, curbstones, insulated blocks, garden blocks, light weight blocks and others.
Most popular related searches
With SUMAB, you get more than just equipment, but a whole range of solutions for creating high-quality concrete blocks, panels and other products. We offer support at every stage – from design to installation and training – so that your business achieves maximum results. By choosing SUMAB, you choose quality that has been tested by time and more than 500 successful projects worldwide.
Production capacity:
- For blocks 400 x 200 x 200 mm 1.200 blocks/h.
- For blocks 400 x 200 x 120 mm 2.000 blocks/h.
- Concrete element height: 175 mm until 500 mm.
- Maximum production surface [area]: 1.290 mm x 1.130 mm (product height up to 250 mm).
- Maximum production surface [area]: 1.240 mm x 900 mm (product height from 250 to 330 mm).
- Min. block height: 175 mm.
- Max block height with main tamper head plate: 300 mm.
- Max block height without main tamper head plate: 500 mm.
