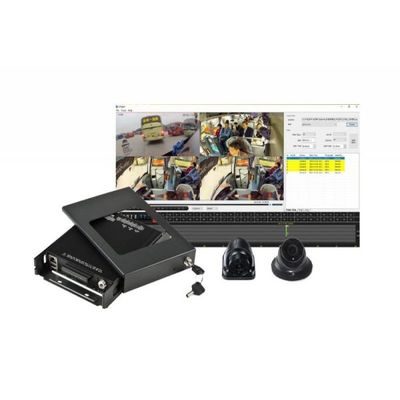

Kocchi - Model HDVR004 -Mobile DVR Camera Systems with GPS

When the ignition is turned on, the device will begin loop recording up to 430 hours of Constant Video to an SDXC Card. After the vehicle is shut off, the device can continue to record for up to 24 hours.

More than 15 minutes of Pre- and Post-Event Alarm Video is captured to the SDXC Card when activated in numerous ways. If a portion of an incident is not captured in the Event Alarm Video, the Constant Video from the same SDXC Card can be seen.

Reduce Fleet Costs

Vehicle insurance, leasing, damage, and maintenance can account for more than half of your fleet’s operating expenses. You may proactively and methodically decrease that essential overhead by utilizing consolidated data and predictive reports.Fleet GPS tracking with video footage allows you to see what actually happened and may save you time and money while also safeguarding your drivers, increasing efficiency, and providing piece of mind. Regular GPS data can only tell you so much, but by incorporating live driver film into your operations via a fleet dash cam and DVR system, you can get comprehensive control of your fleet like never before.A fleet camera system helps ensure that your drivers are adhering to safety regulations, allowing you to keep your cars on the road and your operations operating efficiently. Our fleet GPS tracking includes basic functions as well as video from driver-side and/or road-facing cameras.

Real-Time Tracking

The Kocchi’s fleet GPS monitoring DVR system allows you to follow your fleet in real time and receive notifications of incidents like as speeding, impact accidents, hard acceleration, and sudden stopping. You will be notified and will be able to see a handful of still photos captured during the event. You will also be able to see a video file from the fleet dash cam.You may record the road and the interior of the cab with fleet GPS tracking, which can lead to a reduction in dangerous driving. Seat belt violations, inattentive driving, littering, and other improper driver behaviors can also be detected by fleet dash cams.

Improve Fleet Safety

Having real-time data at your fingertips will allow you to identify possible concerns — such as accident-prone drivers, lease mileage difficulties, and imminent maintenance — before they occur. Within seconds after an event, the system feeds footage from all cameras simultaneously, enabling rapid visibility and the opportunity to quickly settle responsibility. You may also track money-saving and expense-cutting trends using a complete collection of statistics.Cloud-connected GPS tracking fleet dash cameras provide continuous high-quality video clips and night vision via a searchable web dashboard. Furthermore, the front and back cameras give a 360-degree vision. Reports based on d can also be generated.

The HDVR series mobile digital video recorder is a compact, full-featured H.264 1080p/720p recording system that uses an SD card as a storage device.Multiple 1080p HD cameras to provide full 360° coverage and ensuring crucial events aren’t missed.

This vehicle DVR system, used in conjunction with the cameras, records up to four channels of full-motion video and audio data to a Class 10 (minimum) SD card. The firmware-driven menu system provides a simple method for configuring the unit’s operation as well as searching for and viewing previously recorded AV records.HDVR system is backed by the powerful Central Management Software(CMS), manage LIVE video with confidence with Kocchi’s complimentary video playback software and online platform.

1. Video & Audio

• High Profile video compression, real time recording 1080p30, 720p30 and 540p30 for each channel. Frame rate adjustable for each channel.
• Audio compression:16bit 48KHz AAC codec. This codec offers high compression with high-quality audio.
• 1080P resolution for each channel, which means each channel support 1920×1080 @30fps.
• H.264 High Profile video compression.
• Support 4 channel real-time 1080P video and 4 channel audio recording, total Record resource up to 120 1080P frame/second.

1. Power Management

• Reliable power management, wide voltage: +8V~+32VDC; The power input is protected against short positive transient (1500 watts peak pulse power capability with a 10×1000 us waveform); The power input is protected against negative voltage. Applicable for vehicles with +12V or +24V battery.
• The recorder provides each camera with stable +12V DC power; DVR can detect the short cut on the power circuit.
• Can use ignition to control the power.
• DVR can monitor battery voltage after Ignition off, and auto into sleep mode when voltage is below the specified level.

1. Recording Mode

• Continuous record.
• Support schedule recording.
• Support alarm recording.
• Support alarm pre-recording and post-recording.
• Support motion detection recording.

1. GPS Time Synchronization & Time Zone

• Synchronize the DVR system time with GPS automatically.
• Support All Time Zones Worldwide.
• Support DST (Daylight Saving Time).

1. Speed & Vehicle Status Recording

• Record vehicle speed and car id with audio and video.
• Support 5 sensors, can be connected to speed, ignition, brake, return, right turn, left turn light etc.
• Over-speed alarm and trigger recording with separated files.

1. Hard Disk

• Not support.

1. SD Card

• Support SDHC card within 32GByte.
• Support SDXC card more than 64GByte (Maxim 2048GByte).
• Support hot-plug when the DVR system is not recording or remote-operation(remote copying or playing back).
• Note: If you remove the SD card while recording or operating (remote copying or playing back), it might cause damage to the files on the SD card. While recording, the yellow light on the front panel will be on. So please stop recording or operating until the yellow light is off if you need to remove the SD card.

1. Multiple Player Supported.

• VLC media player (version1.0.0 or above).
• Storm player (Version 2009 or above).
• Winamp (Version 5.531 or above).
