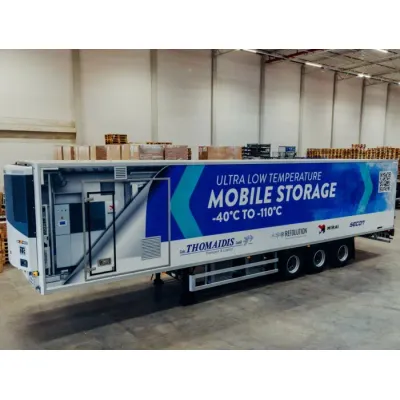

Thomaidis CryoCargo - Model 110 -Mobile Low-Temperature Storage Solution
The CryoCargo 110 from Thomaidis is a specialized mobile low-temperature storage solution designed for transporting and storing sensitive goods under extreme cold conditions ranging from -40°C to -110°C, and optionally down to -160°C. The trailer is constructed with mechanically stable insulating panels featuring PU foam, ensuring effective thermal insulation. The refrigeration system employs natural refrigerants such as air (R729), facilitated by Mirai Intex's cold air chillers to maintain precise temperatures. The safety features include a dead man's switch, battery-buffered LED lighting, non-slip floors, and a passively cooled airlock to limit ambient air intrusion and minimize ice fog. The equipment is controlled by Siemens' industry-standard S7 1200 and can be customized for features like predictive maintenance and GMP Audit Trail with GAMP5 compliance. This system can operate either via redundant diesel generators during transport or through terrestrial power connections while stationary. The CryoCargo 110 supports robust logistics services across Europe and Asia, making it suitable for pharmaceutical, biotech, and industrial applications requiring stringent low-temperature conditions.
BRIEF DESCRIPTION OF THE THOMAIDIS CRYOCARGO 110
The CryoCargo110 is a high-quality mobile low-temperature warehouse, including storage system, safety, loading and unloading concept.
The trailer consists of special insulating panels with PU foam, which are mechanically stable enough for extreme temperatures and achieve an adequate insulating effect for the low-temperature range.
For the main storage room, we used the flexible cold air chillers from Mirai Intex, which achieve temperatures from -40 to -110°C (optionally up to -160°C). Appropriate lock systems are integrated for energy optimization and ice mist reduction.
The machine control is implemented with an S7 and our developed security concepts and can be extended to customer needs, such as GMP Audit Trail with GAMP5. The equipment of the CryoCargo 110 is integrated from temperature monitoring to LED lighting to shelf or rail systems.
LOW-TEMPERATURE LOGISTICS SERVICE
The Cryocargo can be used to transport sensitive goods and as an emergency storage room. The trailer can be chewed turnkey at Thomaidis. In addition, Thomaidis can handle your low-temperature logistics in Europe and Asia with its own trucks.
The technology used is fail-safe, simple and future-proof. The refrigeration technology is driven in mobile operation by redundant diesel generators and in stationary operation via the terrestrial power connection. With this, the truck can also be used safely in the emergency plan described below.
We can also support you in planning and implementing your complete cold supply chain for the temperature range -40°C to -110°C.
EMERGENCY SOLUTION SERVICE CONCEPT
Your existing low-temperature infrastructure has an increased risk of failure due to the technical complexity. In order to ensure that your temperature and expensive goods are maintained, Gebr. Thomaidis GmbH offers a service concept for your emergency situations. This includes the provision of emergency low-temperature storage capacities.
In just a few hours, several units can be at your site, pre-conditioned to your required temperature. There, our solution can cool your goods efficiently and for a long time in terrestrial or diesel generator operation.
TECHNICAL INFORMATION
The CryoCargo110 is a cryogenic trailer that includes a storage system with safety, loading and unloading concepts. The trailer consists of insulating panels with PU foam, which are mechanically stable enough for extreme temperatures.
In order to achieve temperatures of -40 °C to -110 °C (optionally to -160 °C) in the main storage room, we only use air as a refrigerant.
An airlock system is integrated to ensure energy optimisation and ice fog reduction and to allow access to the main storage room. The main task of the passively cooled airlock is to limit the exchanged air volume between the ambient air and the main storage room.
