Mobile Sludge Dewatering

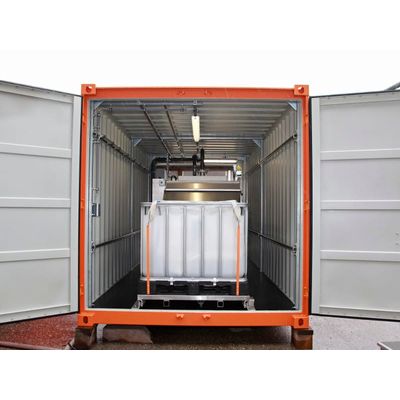

The mobile sludge dewatering is a compact and fully automated solution to thicken up to 12m³/h of liquid sludge and then dispose of it. The system, installed in a 20′ container, separates the solids and residual water from the liquid sludge. The result is a compact sludge in landfillable/incineratable form, which can be easily disposed of using a Big Bag. The plant is an ideal supplement to the mobile waste water treatment plant MFD_R200, in which industrial waste water, mainly from high-pressure removal, is cleaned in a combined and fully automatic process and separated into reusable clear water and sludge. Our new mobile Reprotex sludge dewatering system is available under the name MDD. This system is an exclusive product developed by REPROTEX on the basis of experience gained in practical applications of various customers.
20 ‘ LC container : 6m x 2,4m x 2,6m
weight (net) : 2.000 kg
throughput : up to 12m³/h
power supply : 400 V, 50 Hz, 2 kW
operation : automated
output : slurry
sludge consistency : compact
sludge discharge : big bag
The possible applications of sludge dewatering in combination with the mobile wastewater treatment plant MFD_R200 are manifold. The greatest benefit lies in applications with large volumes of wastewater and sludge.
With the MDD it is possible to reduce the sludge volume by up to 99%.
When used with high levels of contaminated wastewater – and thus the sludge – the use of the MDD reduces the disposal costs to a minimum.
