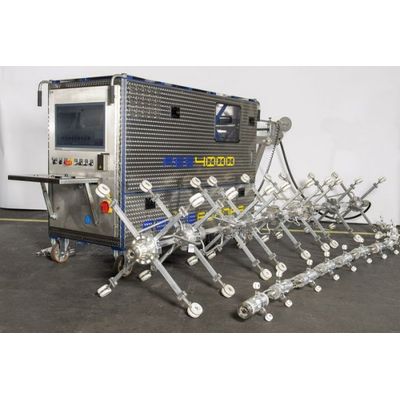

Relineeurope - Model REE4000 -Mobile UV Curing System
With the REE4000, the RELINE UV Group provides the most powerful UV curing technology currently available on the market. The curing system offers a maximum light power output of up to 6 x 4,000 W and enables with its electronic assistance and documentation systems the highest possible levels of reliability and an autonomous curing process technology.
The REE4000 can be used for diameters from DN 150 to DN 2000. Particularly in the case of large diameters in combination with big wall thicknesses, the system offers unparalleled advantages thanks to its innovative UV emitter technology
Available light sources:
- Speed Chain
10 x 300 W – 600 W for DN 150 – DN 500 (DN 600 optional) - Rapid Chain or Rapid Cube
6 x 1,000 W – 3,000 W for DN 600 – DN 1300 - Power Cube
6 x 2,000 W – 4,000 W for DN 1400 – DN 2000
REE4000 mobile and REE4000 professional
The REE4000 is available either as a mobile version or as a permanent system installed in a box truck.
The REE4000 mobile has a fully automated cable drum with cable lengths of up to 200 meters and additionally an integrated operation keyboard.
The REE4000 professional is equipped with a curing cable of up to 350 meters.
REE4000 - The only almost autonomous UV curing system worldwide
- Autonomous curing process through innovative, assistant-controlled curing
- Specialized REE4000 control and curing software
- QR code scanner for importing curing-related data (job site data, initial speed and max. speed rate, interior pressure).
- Rotation front camera, enables to inspect the entire liner prior to curing, especially those with large diameters
- Ultrasonic sensor technology for automatic stop- system and rear camera in the curing plug
- Automatic emergency switch-off, if a pressure drop below 50 mbar is detected.
