Inovair

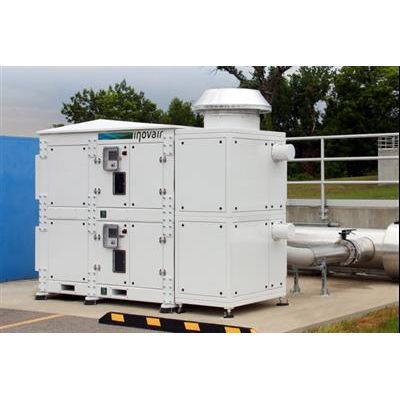

Inovair - Model IM-30 -Modular Blower
FromInovair
The Inovair IM-30 is the industry’s first truly modular blower design. Each module operates independently from any other module. Modules can be deployed as single units or in a stacked configuration. Many wastewater treatment plants suffer from an inability to optimally regulate flow, causing them to over-aerate or blow-off excess air. Both of these negatively impact attempts to save energy. The IM-30 solves this problem through modularity without burdening the overall blower footprint.
Most popular related searches
wastewater treatment plant
blower
wastewater treatment
wastewater plant
flow regulation
flow regulator
aerator
VFD drive
industrial noise
- Energy Efficient (~80% isentropic)
- Proven Integrally-geared Design
- Industry Standard Components
- Compact Design
- Maintenance-friendly
- Engineered and Built in the USA
- Handles fluctuating pressures
- Capable of multiple start/stop cycles every hour
- Reduction in capital costs for stand-by units
- Direct couple drive system
- Indoor or outdoor intake vents
- Touchscreen interface
- Detachable airbox frame
- Hinged doors for blower access
- Removable access panels
- Customizable configuration
- Annual maintenance
- Industry-first modular blower design
- Up to 4:1 capacity turndown
- Greater process flexibility
- Up to 50% space savings
- Industry-standard components
- Low Noise (75-85 dBA)
- Available as stacked units, a single unit and/or without frame and enclosure
- Flow Capacity 300-4000 scfm
- Design Pressure 4-22 psig
- Turndown Ratio Up to 4:1 (2:1 per module)
- Motor Power 40-250 HP
- Drive Standard VFD
- Input Power 230V-575V, 60 Hz
- Impeller 5-axis machined 7075-T6 Aluminum
- Control System Integrated Touchscreen PLC
