Inovair - Model IM Series -Modular Blower
FromInovair

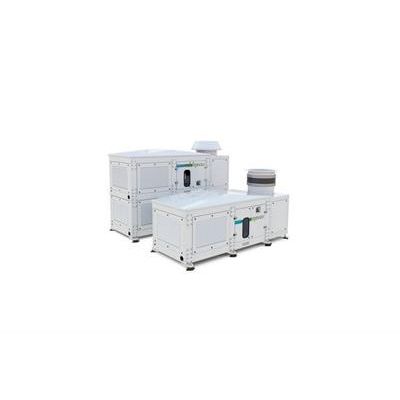

The Inovair IM Series is the industry`s first truly modular blower design. Each module operates independently from any other module. Modules can be deployed as single units or in a stacked configuration. Many general industrial plants suffer from an inability to optimally regulate flow, causing them to over-flow or blow-off excess air. Both of these negatively impact attempts to save energy. The IM Series solves this problem through modularity without burdening the overall blower footprint.
Most popular related searches
- Energy Efficient (~80% isentropic)
- Proven Integrally-geared Design
- Industry Standard Components
- Compact Design
- Maintenance-friendly
- Engineered and Built in the USA
- Handles fluctuating pressures
- Capable of multiple start/stop cycles every hour
- Reduction in capital costs for stand-by units
- Direct couple drive system
- Indoor or outdoor intake vents
- Touchscreen interface
- Detachable airbox frame
- Hinged doors for blower access
- Removable access panels
- Customizable configuration
- Annual maintenance
- Industry-first modular blower design
- Up to 4:1 capacity turndown
- Greater process flexibility
- Up to 50% space savings
- Industry-standard components
- Low Noise (75-85 dBA)
- Available as stacked units, a single unit and/or without frame and enclosure
- Flow Capacity 300-4000 scfm
- Design Pressure 4-22 psig
- Turndown Ratio Up to 4:1 (2:1 per module)
- Motor Power 40-250 HP
- Drive Standard VFD
- Input Power 230V-575V, 60 Hz
- Impeller 5-axis machined 7075-T6 Aluminum
- Control System Integrated Touchscreen PLC
