LM Air Technology, Inc.
Model MDR Series -Modular Downflow Cleanroom

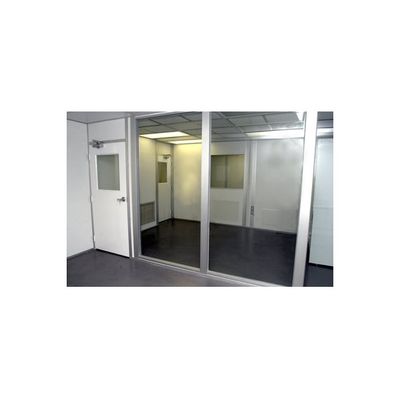

MDR Series – Modular Hardwall Cleanrooms – vertical HEPA filtered airflow cleanroom providing an ISO 5 / Class 100 condition or better; available in various sizes & configurations. The complete unit features durable modular Hardwall construction, using prefabricated walls with wiring posts every 4’ (on center) for efficient installation. (Other Cleanroom Classes Available).
Most popular related searches
modular hardwall cleanroom
cleanroom lighting
cleanroom
HEPA ceiling filter
cleanroom window
modular cleanroom
HEPA filter
fan filter
blower filter
cleanroom door
Applications: Microelectronic Fabrication, Medical Device Manufacturing, QC Inspection, Sterile Filling & Packaging, Pharmaceutical Processing, Semiconductor Manufacturing
Filters: compact self-powered HEPA (High Efficiency Particulate Air) ceiling modules. 70mm filter pack. Minimum efficiency of 99.99% at .3 microns; 600 – 750 CFM, 55 dBA’s, (ULPA filters available)
Prefilters: 1″ bonded polyfiber minimizes surface-loading. 78% arrestance – 56-57 ASHRAE.
Airflow: Average clean air velocity 90 fpm (+/-10 fmp). All measured values within +/- 20% uniformity.
Construction:
Electrical & Power Requirements: All electrical components are UL Approved / NEC Electrical Code. Standard 115V, 15 Amp, 1 pH, 60 Hz. Units supplied with harness wiring or electrical panel.
Motor/Blower Assembly: High efficiency Lo-Pro motors to reduce electrical load. Thermally protected & self-lubricating High capacity metal backward curved impellers within direct drive external rotor motors to reduce wear. Statically balanced to maintain constant airflow. Units sit within ceiling grid.
Lighting: Recessed fluorescent “cleanroom” type sealed 4 bulb Lighting – 125 ft. candle +/- 20 ft. candles. Plastic prismatic lens cover maximizes light diffusion – Lights are drop-in style, sit within ceiling grid.
Controls: Solid state, adjustable airflow control, 70-120 fpm, 15A load capacity, switches for motor & lights.
Drawings: A complete set will be provided for all Cleanroom projects – Six Step Solution included – design assistance, project management, installation (LM Air’s trained staff), maintenance.
Options:
Prefilters: 1″ bonded polyfiber minimizes surface-loading. 78% arrestance – 56-57 ASHRAE.
Airflow: Average clean air velocity 90 fpm (+/-10 fmp). All measured values within +/- 20% uniformity.
Construction:
- Modular Walls – available in various thicknesses – Polystyrene core (1 ¾” & 3” walls are most common).
- Wall Covering – various textures include painted Steel or Aluminum, Laminated woodboard & Vinyl covered.
- “U” Track – Base / Top cap with “H” wiring posts & pre-formed outside corners – Painted Steel or Aluminum.
- Cleanroom Doors -1 3/4″ Steel or Aluminum, pre-hung with 2’ x 2’ view glass – standard doors = 3’W x 7’H; (other doors are available including double doors, wider or higher than standard doors & also sliding doors)
- T-Grid Ceiling system – Anodized or Painted Aluminum – gasketed, Heavy duty 1 1/2″ x 1 1/2″
- HEPA Fan Filter units, Cleanroom Lights & Cleanroom Ceiling Tile.
- I-beam support is provided, to allow structural & ceiling support (roof deck available)
- Cleanroom windows are available – full view or ½ view – safety glass or Polycarbonate
Electrical & Power Requirements: All electrical components are UL Approved / NEC Electrical Code. Standard 115V, 15 Amp, 1 pH, 60 Hz. Units supplied with harness wiring or electrical panel.
Motor/Blower Assembly: High efficiency Lo-Pro motors to reduce electrical load. Thermally protected & self-lubricating High capacity metal backward curved impellers within direct drive external rotor motors to reduce wear. Statically balanced to maintain constant airflow. Units sit within ceiling grid.
Lighting: Recessed fluorescent “cleanroom” type sealed 4 bulb Lighting – 125 ft. candle +/- 20 ft. candles. Plastic prismatic lens cover maximizes light diffusion – Lights are drop-in style, sit within ceiling grid.
Controls: Solid state, adjustable airflow control, 70-120 fpm, 15A load capacity, switches for motor & lights.
Drawings: A complete set will be provided for all Cleanroom projects – Six Step Solution included – design assistance, project management, installation (LM Air’s trained staff), maintenance.
Options:
- Duct collars for Fan Units
- Seamless flooring
- Double doors
- Ionized system
- Magnehelic pressure gauge
- Electrical duplex receptacle
- Flow through cleanroom lights
- Cleanroom windows
- Roof decking sealed plenum
- Control panel
- Sprinkler drop
- TCS blower/filter system
- Replacement pre-filter, 12/case
- Roomside replaceable HEPA units
- Single Pass or Recirculating Cleanrooms
