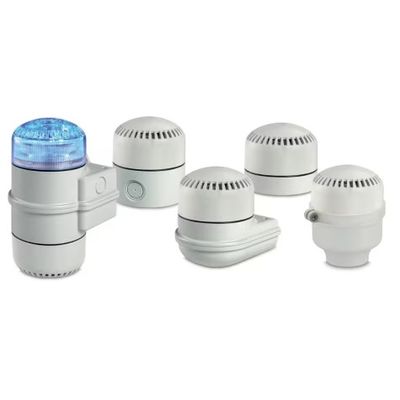

Federal Signal StreamLine - Model SLM700 -Modular Electronic Sounder
Model slm700 is a multifunctional electronic sounder developed with a multiple input technology that produces two different tones (one per channel), controllable via wiring selection. There are 64 unique tones to select from across two switches (32 tones per switch). The volume of the tone is adjustable between 86-105 dBa @ 1m at three output levels (high, medium, low) through an integrated button. Model slm700 body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications. * Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting slm Documents or Rev A Tones.
- Compatible with 12-24VAC/DC or 120-240VAC*
- PLC compatible with PNP or NPN connections (Except Dock Base, only NPN)
- Choice of 64 selectable tones (32 per input selectable via DIP switch)
- Produces two tones at three adjustable tone levels
- Adjustable volume between 76 dBa to 95 dBa @10` (86-105 dBa @ 1m)
- Seven mounting base options
- Type 3R, IP65 enclosure
- CE Certified
- UL and cUL Listed
*Voltage is dependent on selected base (sold separately).
- Enclosure Rating: Type 3R, IP65
- Environmental Rating: Ordinary Location
- mAmps: 85 @ 12VDC | 60 @ 24DC | 280 @ 12VAC | 190 @ 24VAC | 125 @ 120VAC | 90 @ 240VAC
- Warranty: Five-year
