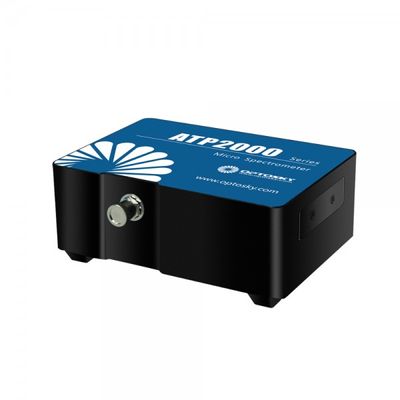

Optosky - Model ATP2000P -Modular Spectrometer
Optosky ATP2000P has a low-noise, high-performance, and cost-effective. The sensor used 2048 pixel CCD responding from 200-1100 nm. ATP2000P is ideal for fast-detect because of high A/D converter frequency and the high-speed data transmission. In the memory chip is available for some solid programmed algorithms that can improve the performance, such as wavelength calibration coefficient, linearity coefficient. It transfers spectrum to PC through USB 2.0 or RS232 interface. ATP2000P operates with a single +5VDC supply supplied from USB or duo-pin interface. ATP2000P has free SDK for customers self-developed, Optosky support C++, C#, Labview and Linux system SDK, which is very convenient for OEM customers to design solutions.
Most popular related searches
spectrometer
wavelength calibration
biochemical analyzer
optical detection
fluorescence analyzer
fluorescence spectrophotometer
transmission data
spectrophotometer
raman
fluorescence monitoring
| OPTICAL PARAMETER | |
| Detect Range | 200-1100 nm |
| Focal Distance | 40 mm for incidence / 60 mm for output |
| Optical Resolution | 0.1-3 nm |
| Incident Interface | SMA905 connector |
| Signal-To-Noise | >600 : 1 |
| Dynamic Range | 5000 |
| Working Temperature | -10°c to + 50°c |
| Numberical Aperture | 0.11 |
| Working Humidity | < 90%RH |
| Trigger | YES(IN and OUT) |
| Cooling Temperature | uncooled |
| Full Well | NA |
| Scanning Rate | < 1 kfps |
| Wavelength Range | 200-1050 nm, 350-800nm, 300-1100nm, 180-410nm, 780-1100nm |
| DETECTOR | |
| Detector Type | Linear COMS |
| Effective Pixels | 2048 |
| Pixels Dimension | 14μm×200μm |
| Detector Model | Hamamtsu S11639 |
| Sensitivity | 1300 V/(lx·s) |
| Dark Noise | 0.4mVrms |
| OPTICAL CONFIGURATION | |
| Optical Design | f/4 crossed asymmetrical Czerny-Turner |
| Incident Slit | 50 μm (5, 10, 25, 100, 150, 200 um are optional) |
| PHYSICAL PARAMETERS | |
| Dimensions | 102×72×36.3 mm^3 |
| Weight | 0.38kg |
| Sealing | Anti-sweat |
| ELECTRICAL PARAMETER | |
| A/D Conversion Resolution | 16 bit |
| Integration Time | 1 ms - 80 s |
| Interface | USB 2.0 |
| Supply Voltage | DC4.5 to 5.5 V (type @5V) |
| Operating Current | 170mA@Typ. |
| Storage Temperature | -30°C to +70°C |
| Operating Temperature | -10°c to + 50°c |
- spectral region: 200-1000 nm
- Spectral resolution: 0.2-5 nm
- Optical configuration: crossed Czerny-Turner
- Linear low noise CMOS detector with 2048 pixel
- Integration times: 0.1ms-256s
- Supply voltage: DC 5V (USB Power)
- 16 bit, 2MHz A/D Converter
- Interface: USB2.0 (High speed)
- 20-pin connector for interfacing to external products
- LED spectrophotometer
- Fluorescence
- Biochemical analyzer
- Transmittance measurement
- Reflectance measurement
