Singer Valve - Model 34 -Modulating Float Pilot with Vertical Rod
The 34 modulating float pilot is comprised of a copper float and brass rod assembly which moves vertically. As the level rises, the float lifts and the valve closes. The 34 pilot is optional pilot, available for modulating applications where the float and rod are installed in a still well and / or vertical action is preferred.
Most popular related searches
The pilot shall be a Singer model 34.
- The pilot shall be of the modulating style and made of bronze and brass construction.
- The pilot shall include a 4 ft / 1.2 m brass float rod and a copper float. The brass float rod shall have
- a vertical stoke controlled by a lever arm and counter weight.
- The pilot will close the valve on rising water level however the pilot will modulate between open and
- closed in direct proportion to reservoir level.
- Maximum working temperature: 120° F / 49° C
- Maximum working pressure: 80 psi / 5.5 bar

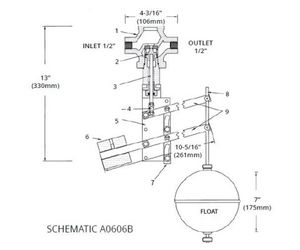

1. Body (Bronze)
2. Inner Valve (Stainless Steel)
3. Valve Stem (Stainless Steel)
4. Connector Bar (Brass)
5. Mounting Bracket (Brass)
6. Counter Weight (Cast Iron)
7. Guide Bar (Brass)
8. Float Rod (Brass)
9. Lever Arm (Brass)
ORDERING INSTRUCTIONS
Refer to page 244 for the order form and ordering instructions. Options: Available with stainless steel float and rod
