QUALIA - Model BSL-3/BSL-4 -Module Laboratory
The term “module laboratory” can refer to a modular, prefabricated laboratory unit designed for high adaptability and rapid deployment. These laboratories are typically constructed in a factory setting and then transported and assembled on-site.
QUALIA has innovated a medium-sized, all-stainless steel, fully welded animal laboratory, which meets the stringent ABSL-3 (Biosafety Level 3) standards, ensuring a secure environment for handling biological hazards.

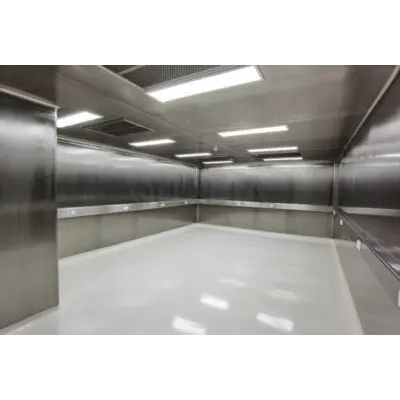

QUALIA’s module laboratory boasts an integrated structure made of 316 stainless steel with a substantial thickness of 3mm, ensuring durability through full welding. This robust construction is ideal for demanding biosafety applications.
The unique layout comprises 5 independent rooms, 2 corridors, and 5 buffer zones, spreading over a total area of 500 square meters. Such a spacious arrangement facilitates efficient workflow and safe containment.
The frameless design allows sealed components to pass through the walls and blend with the rooms, resulting in seamless equipment integration. This negates the need for second-time installations, thus saving time and reducing on-site labor.
- CNC processing of all structural elements ensures a perfect match with wall panels.
- Interior and exterior wall corners feature arc coving, allowing for a smooth, hygienic transition.
- The precise flatness constraint, with a deviation less than 2mm per meter.
- Airtightness that reaches ±500Pa decay, with a minimal volume loss over time.
As per specific customer requirements, welding joints have undergone meticulous sandblasting. This is a critical process to ensure long-term airtightness and is especially important for areas subjected to close inspection.
QUALIA’s engagement starts from the initial design phase, receiving the client’s screen layout and creating 3D models, encompassing the main structure and all biosafety protective equipment such as airtight doors and VHP pass-throughs. After user confirmation, QUALIA proceeds to factory-based production and 1:1 scale processing. Prefabrication in the factory includes all protective equipment, allowing for swift on-site installation with pre-established ports and outlets, eliminating the need for any on-site alterations.
