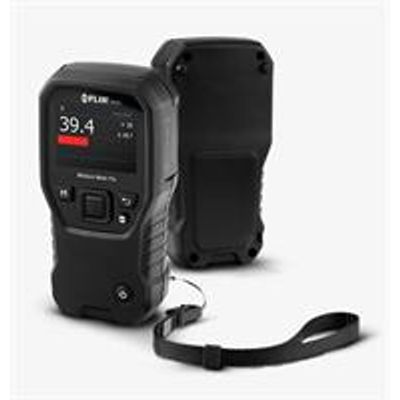

FLIR - Model MR60 -Moisture Meter Pro
The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture, or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time, and settings.
Most popular related searches
moisture meter
pinless moisture meter
moisture content measurement
non-destructive measurement
non-destructive monitoring
moisture sensor
moisture monitoring
integrity monitoring
reference material
drywall
Meets all your professional needs
- Destructive or Non-Destructive Measurements
Integrated pinless moisture sensor and an external pin probe included for resistive moisture content measurements in a variety of substrates. - Clear, Accurate Readings
Choose from 11 material group selections for pin-based readings, then save up to 10,000 screenshots to transfer and view via PC/USB. - Simple to Use and Create Reports
Features an easy-to-read display and intuitive user interface. Save files and generate reports with free FLIR Tools software.
- Overview
- Internal Memory : 4GB
- IP Rating/Drop Test : IP54/3m (9.8 ft)
- Packaging Size : 51.2 x 25.8 x 64 cm†(20.2 x 10.2 x 25.2 in.)
- Typical Usage : 4 work weeks
- Warranty : 2 years
- Compliance & Certifications
- Agency Approvals : FCC Class B, CE, UL
- Environmental
- Operating Humidity : ≤ 90%, 0~30°C (32~86°F), ≤ 75%, 30~40°C (86~104°F), ≤ 45%, 40~50°C (104~122°F)
- Operating Temperature : 0~50 °C (32~122 °F)
- Storage Humidity : 90% RH
- Storage Temperature : -10~60°C (14~140°F)
- Imaging & Optical
- Continuous Run Time : 18 hours max
- Display type (W x H) : QVGA (320 x 240) pixel 2.3" 64K color TFT graphical display
- Measurement & Analysis
- Measurement Resolution : 0.1
- Pinless Moisture Range : 0–100 relative measurement
- Response Time Pin Mode : 750 ms
- Response Time Pinless : 100 ms
- Sample Rate : 10Hz (approx., both modes)
- Pin Moisture via Ext Probe Range : Construction material groups: 0- 20% (reference only) / 10: brick, cement screed, concrete / 11: cement mortar, anhydrite screed, lime mortar, plaster Wood groups 1-9: 1-5: oak, most maples, pine, hickory, teak, sycamore 6-9: building materials: plywood, drywall, OCD 7% - 30% 30 % - 100% ±1.5% (reference only) Construction material groups: 10: brick, cement screed, concrete 11: cement mortar, anhydrite screed, lime mortar, plaster 0- 20% (reference only)
- Pinless Moisture Depth : 1.9cm (0.75") maximum
- Meter Data
- Auto Power Off : Programmable: OFF, 1, 5, or 20 minutes
- Other
- Certification Standards : EN61326 (EMC), EN61010 (Battery + Charger)
- Power
- Battery : 3.7 V, 3000mAh Li-ion rechargeable via micro USB
- Power Adapter : 100–240 V input/ 5 V 1A output
- Power Requirements : Integrated rechargeable battery
- Shipping Information
- Includes : MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card
- Storage Media
- Saved Image File format : Bitmap (.bmp) with measurement values overlaid
- Stored Data File Format : Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included.
- Stored Image Capacity : 9999 images
