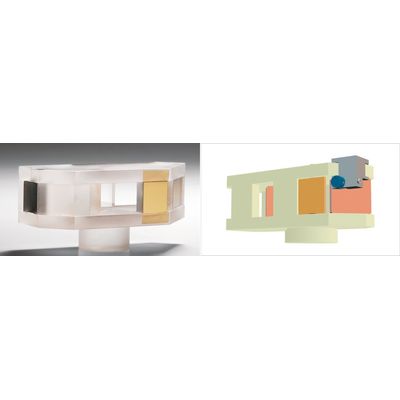

PLX - Model INT05-N -Monolithic Michelson Interferometer
The INT05-N Monolithic Michelson Interferometer is offered for companies wishing to construct proprietary NIR Fourier Transform Spectroscopy analysis. Featuring rugged construction and permanent alignment.
The unit is permanently aligned and fused with the two arm mirrors imaged onto each other by a beamsplitter-compensator in a monolithic assembly. Using PLX`s Monolithic Optical Structure Technology™ (M.O.S.T.).
The unit is extremely rugged and never needs adjustment. A moving retroreflector is added to one arm to complete the interferometer and allow for the variation of the optical path difference around zero OPD. The rugged construction and permanent alignment make the INT05-Series NIR interferometers suitable for your most demanding NIR analyzer applications.
Specification: Value
CLEAR APERTURE: Ø0.50in / 12.7mm
EXITING WAVEFRONT: 0.10 WAVES P-V @ 633nm
OPERATING RANGE: 4000-12500 cm-1 (0.8-2.5 µm)
MASS: 210 grams
OPERATING TEMPERATURE: 20° - 40°C
OPERATING THERMAL GRADIENT: 2°C ABSOLUTE; <2°C / 100mm
