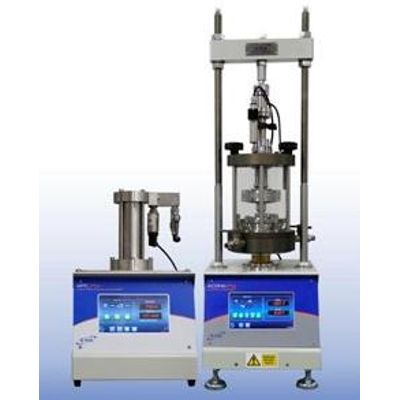

VJ Tech - Model ACONS Pro -Motorised Automatic CRS System
FromVJ Tech Limited
Features motorised actuation of Load instead of compressed air or bulky weights, Includes a 15 kN (2176 psi) Load Cell (Internal Load Cell also available), Multi-Purpose Frame with up to 3 input channels (2 x Analogue & 1 x Digital (note: Digital channel is Read only, not for Closed Loop Control))
Most popular related searches
load cell
rock testing system
pore-water pressure
pore pressure
soil testing
triaxial testing
rock testing
rock test
compressed air
sensor data
- Pro Single Automatic Pressure Controller (with additional Analogue Input Channel) for Back Pressure
- Pore Water Pressure is measured using a Pressure transducer
- Multi-Purpose Cell with CRS kit for Stress and Strain Testing
- The frame can also be used with the same Cell for;
- Consolidation Testing
- Soil-Water Characteristic Curve Testing
When fitted with additional accessories, the same frame may also be used for;
- Triaxial Testing
- Unconfined Compressive Strength Testing
- Includes 15 kN Load cell
- For samples up to 100 mm (3.9")
- Can be used with Internal Submersible Load Cell (supplied separately)
- Up to 4 input channels (1 x Digital & 3 x Analogue) (note: Digital channel is Read only, not for Closed Loop Control))
- USB or Ethernet Interface for computer control
- Integrated 7" Touchscreen Display for standalone control
- On-board data logging (16GB standard), able to store thousands of Tests, each with thousands of data points
- Data export via USB link to PC for manipulation in Excel if required
- High speed ARM processor
- High speed sensor data conversion (24 bit, up to 5000 samples/sec)
- Built-in live data table and graphs
- Built-in Auto engage function with definable engage value
- Auto reverse from limit switch activation
- Built-in auto protection for sensor limits
- Non-volatile Memeory for sensitive data
- Multiple ACONS Pro MPC frames can be controlled from a single PC via USB hub or Ethernet router
Sample Diameter: Up to 100 mm (3.9")
Maximum Frame Capacity: 15 kN
Resolution: 0.1 N
Accuracy: 0.15% FRO
Adjustable Displacement Rate
0-10.0000 mm/min
Power Supply: DC Adaptor (Output 24VDC, Input 90-240V, 50/60Hz, 1ph.)
