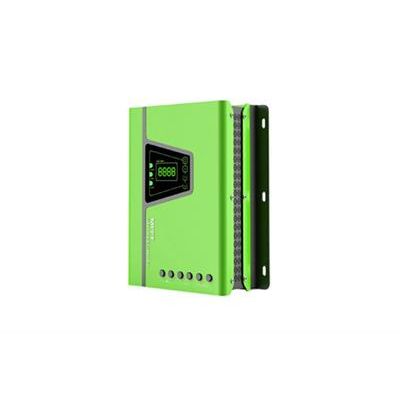

Model CNS24 -MPPT Solar Charge Controller
This is a MPPT (maximum power point tracking) smart solar charge and discharge controller，the core of every PV system, precisely controlling the energy flow, protecting the battery, and increasing system efficiency.
Most popular related searches
solar charge control
solar charge controller
MPPT charge controller
charge controller
solar charge
MPPT solar charge controller
solar power system
fast charging
solar controller
photovoltaic system

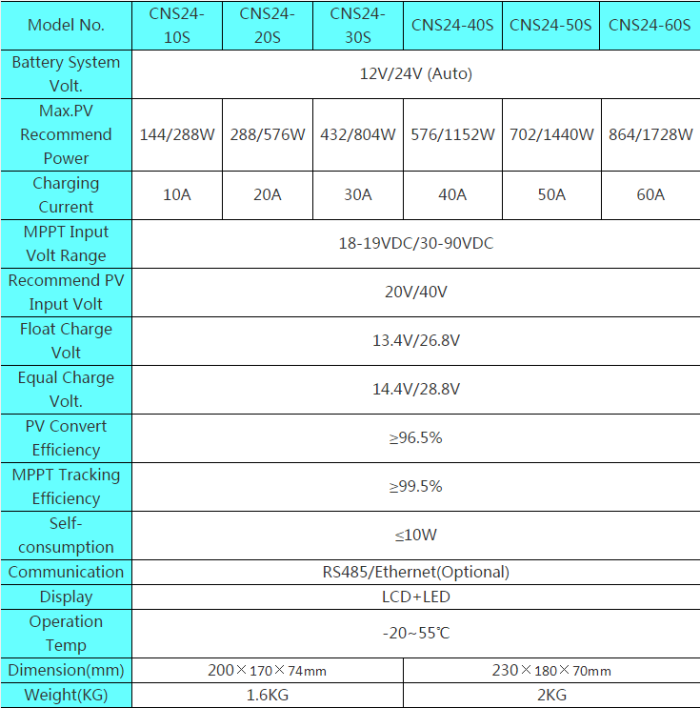

- Model Number: CNS24
- Capacity: 144-1728W
- Nominal voltage: 18-90VDC
- Frequency: 50/60Hz
- MPPT tracking charging mode with the peak efficiency up to 99.9%,30% higher than PWM controller
- 12/24V automatic voltage recognition system, ensure the batteries be provided with the correct amount of charge
- Three stages charging: fast charging, constant voltage charging, floating charging
- Intelligent MCU control core technology
- Complete protection: DC&AC overload, under-voltage, SPD, short-circuit, overcharge, over-discharge, over-temperature and so on.
- RS485 telecommunication and data transmission
- Historical record and inquiry function
- LCD display + LED status indicator
- Certifications: CE, FCC (we can help customer with other approvals)
- Warranty:2 years, can be extended to 3-10 years
