TR Solids - Mud Desander

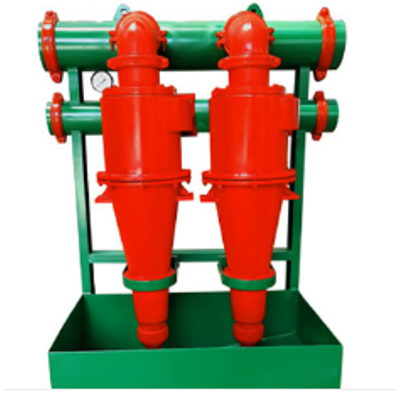

Mud Desander also called Drilling Fluid Desander. It is composed of hydraulic desander hydrocyclone, mud shale shaker and cyclone pipe. TRCS series mud desander uses centrifugal force to separate. It uses centrifugal pump to supply mud, then the mud flow into hydrocyclone along tangent of cyclone, and the mud`s structure was destroyed under the action of centrifugal force. Under the action of gravity, solid particles along the inner wall sink spirally and was discharged from the bottom of cyclone then falls on the following drilling shale shaker, liquid was discharged from the top of the cyclone.
TR Solids Control mud desander for oilfield drilling. API certified. 45-75um separation, long life polyurethane cyclone. Replace Derrick & Swaco.
Working Principle of Mud Desander
Mud desander uses centrifugal force to separate solid particles from drilling fluid. Driven by a centrifugal sand pump, mud enters the hydrocyclone tangentially. Under high centrifugal force, solids (45-75um) sink along the inner wall and discharge to the shale shaker, while clean fluid exits the top.
Application Scenarios
Oil 8t gas drilling, coalbed methane extraction, directional drilling, tunnel boring machine (TBM), river dredging, pile foundation engineering.
- Long life
- Small separation point
- Less blockage
Desander cyclone uses high chromium cast iron or pure polyurethane material, customers can choose independently. We can exchange it with an international brand.
The cyclone has long lifetime and light weight, and easy to maintain. High separation ability and wide separation range. It can remove solid particles from 45 um to 1 mm.
Cyclone underflow is pressurized umbrella "wet bottom" to quicldy discharge the particles in the separation zone, reducing the blocking probability.
