Prime Drilling - Model PD X-1.000 HD -Mud Pump
The X-series mud pump type PD X-1.000 HD manufactured by PRIME DRILLING impresses with its robust and low-wear design. The 7-fold bearing mounted drive shaft, which is equipped with 3 eccentric wheels, replaces the conventional crankshaft. Due to the revolution of these shafts and their maximum 235 rotations per minute operational wear is reduced to a minimum.

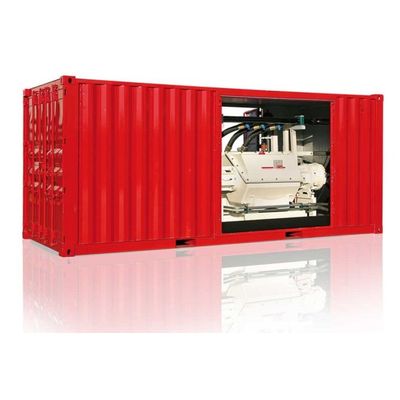

The use of most modern hydraulic components enable continuous control of the shaft speed and the thus generated linear speed of pistons or rather the flow rate of the drilling fluid by the speed of the hydraulic motor. The pump has a compact design and is installed into a silenced 20 ft. container. The integrated skid system allows to pull the pump out of the container fast and easily for service and maintenance. The container is designed as such to enable fast and easy transport via a twist-lock system.
- Flow Rate: 834 l/min - 1.307 l/min
- Max. Flow Pressure: 124 bar - 135 bar
- Drive: 150 rpm - 235 rpm
- Drive Power: 130 kW - 240 kW
