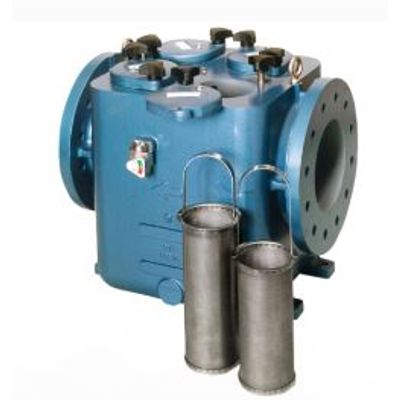

Absolute - Model OV -Multi-Basket Filter
The Single Filter Multi-Basket is specially designed to be compact and easily maintained, with basket removal easier compared to other units with similar pipe size connections.
Airpel Series OV multi basket filters are designed for the removal of solids from liquid flows. Any solids larger than the selected filtration media are retained within the filter baskets (in to out filtration) and can then be disposed of safely and in a controlled manner. The OV series is used in liquid handling installations where the flow can be interrupted for short periods to allow the removal of the basket for cleaning.
CONSTRUCTIONAll Airpel Series basket filters are of cast construction and house high quality stainless steel cylindrical baskets. The design allows quick and easy access to the baskets so they can be cleaned and re-used, helping reduce operating costs and controlling debris levels. Specially designed to be compact and easily maintained the multi basket range is of cast construction and is supplied with four or five high quality stainless steel cylindrical baskets.
- Robust simple design Easy access cover design
- Compact Design
- Multi basket option
- Screw and flange connection options available
- Standard Airpel Design
- Basket design
- Higher filtration area / volume than *Y" types or conical filters
- Low cost effective unit
- Quick opening for access to basket(s)
- Smaller foot print
- High levels of filtration area and more compact design (Compared to `like for like` products)
- Client can chose best options for their installation
- Wide range of sizes and materials available from standard stock
- Debris is held within basket
- Lower clean pressure differential and greater dirt holding capacity
- Keeps within budget constraints
- Reduced down time and no tooling required
- Can be installed in tight / small locations
- Less space required for installation and high filtration area gained
- Suit new or existing pipeline connections and reduce costs
- Meets customers delivery and budget requirements
- Re-use. easier &, cleaner to dispose of unwanted filtered solids
- Less down time, potential smaller filter selection
- 200mm (8″) & 250mm (10″)
- Flanged and Screwed connection options
- Materials in Cast Iron, Cast Steel, Stainless Steel and Gunmetal
- Drain plug
- Quick release cover design for easy access
- Filtration levels down to 10 micron
- Heating Jackets
- Air vents
- Differential Pressure Indicators (DPI)
- High temperature / pressure options
- Exotic basket materials available
- Magnetic basket inserts
- DIN sensors to provide remote high DP signal
PROTECT PIPELINE EQUIPMENT AGAINST DAMAGE
Machinery such as pumps and valves can be broken by grit, metal fragments, etc. while nozzles and heat exchangers have narrow construction that could easily become blocked, this equipment is expensive to repair / replace and the cost of downtime could be crippling, so the installation of a strainer ensures that the primary equipment is protected from any unplanned outage.
Typical Applications would include:
- Nozzle protection
- Heat exchanger protection
- Valve protection
- Pump protection
REMOVE PARTICLES FROM FLUID PRODUCT
Even if pipeline equipment is not at risk particles in discharge may breach environmental legislation or product acceptance criteria, so the use of a strainer / filter can prove to be a cost effecting and efficient way to maintain the process fluids quality whilst maintaining working standards.
Common industries where product quality is essential:
- Water treatment
- Food and beverage
- Pharmaceutical
- Paints, inks and varnishes, etc.
