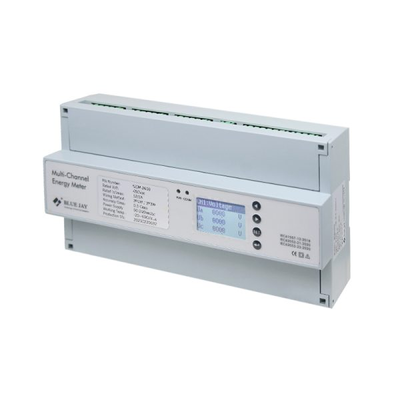

Blue Jay - Model MCM2600 -Multi Channel Power Meter
MCM2600 multi channel power meter is designed for Industrial or commercial branch circuit metering projects. The MCM2600 series branch circuit power meter includes the MCM2603 multi-channel power meter and the MCM2601 multi-channel power meter. The MCM2603, a three-phase meter, supports 6-channel metering and 3P4W/3P3W wiring. The MCM2601, a single-phase branch circuit power meter, supports 18-channel metering and 1P2W wiring.
Most popular related searches
power meter
energy meters
energy meter
energy metering
power factor
electricity meter
energy metering system
energy digital
alternative energy
- Optional Profibus
- Optional 6*Digital inputs
- Optional 2*Digital outputs
The MCM2600 series multi channel power meter has the basic measuring function of Voltage, Current, Frequency, Total power factor, Active power, Reactive power, Apparent power, Active energy, Reactive energy, etc. Provides 1 channel pulse output for accurate energy metering and external system integration.
- 35mm standard din-rail installation
- 13M width with a 1.6” dot matrix LCD screen
- 0.5s class high-precision performance
- Multiple digital energy meter alternative
- 6 channels or 18 channels circuit metering
- Measurement accuracy class 0.5s
- Current measuring: 1A or 5A
- Power supply: 85-265VAC/DC
- RS-485 Modbus/RTU Communication
- Optional 6 channels Digital Input (DI) or 2 channels Digital Output (DO)
- Optional advanced electrical parameter
- Optional max 99 lists SOE record
- Improving reliability and reducing maintenance costs
- Accept customization design
