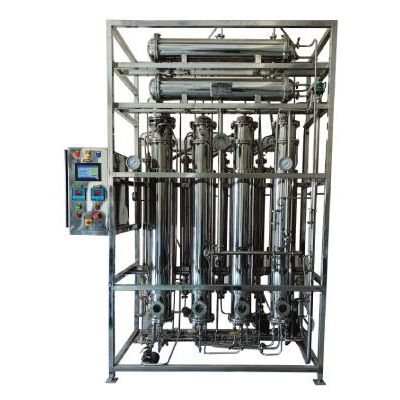

Neelam - Multi Column Distillation Plant

FromNeelam Industries

SHARE

The unit and all its components such as feed water pump, pre-heater and condensers are mounted on a stainless steel AISI 304 skid.

Most popular related searches

digital flow meter

feed water pump

chemical analysis

water distillation

diaphragm valve

All parts in contact with the media are made of stainless steel AISI 316L, insulated with mineral wool (asbestos-free material) with external cladding made of stainless steel AISI 304.
Inner surfaces are polished to Ra < 0.5 µm and electro polishing is an available option.
Hygienic design: Including clamp connections, orbital welding techniques for tubing and components, minimisation of dead legs and proper piping slopes for self-drainability, double tube sheet construction in first column, condenser and pre-heaters, diaphragm valves for distillate/reject, etc
All welding is carried out in inert gas atmospheres (argon), with automatic orbital welding whenever possible.
Inlet & Outlet Conductivity Monitoring.
Pure Steam Outlet Point at Second Column.
21 CFR PART 11 Compliance with Audit Trial in PDF without requirement of additional computer.
Sampling of WFI: the generated WFI can be provided with a collection mechanism for detailed chemical analysis.
Online printing of relevant parameters of the process is provided for process documentation.

Generated WFI meeting the below specified standards microbiological standard

Endotoxins < 0.25 eu/ml
TOC < 500 ppb
Conductivity
Microbial limit
Ammonia
Calcium
Carbon dioxide
Heavy metals
Total solids
Chlorides
Sulphates
pH =5-7
Nitrate
Conductivity at Distill outlet

FINN AQUA based designed to produce Pyrogen-free sterile water (WFI)
Design as per ASME, BPE criteria, GAMP guidelines, etc

Double Tube-Sheet for first column.
Digital Flow Meter for Feed Water Control.
Zero Dead Leg Sampling Valve at Distill water outlet.
