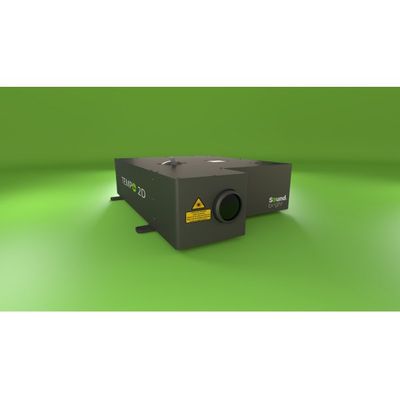

Nanotek Instruments - Model Tempo 2D -Multi Component Receiver

The multi-component laser receiver is capable of simultaneously measuring two components of the surface displacement, the out-of-plane and the in-plane motions, using a single laser probe and a single collecting optic. The detection of the in-plane component allows efficient detection of shear waves, particularly when the direction of ultrasounds propagation is normal to the surface of inspection. The optical setup is based on the TEMPO 1D but with a customized linear array photo-detector capable of detecting both the in-plane and out-of-plane contributions of the surface displacement. The system is capable of reconstructing the complete ultrasonic field. The system is optimized to process highly speckled beams. It does not require a single speckle (reflection on mirror-like surface) like classical coherent laser ultrasonic receiver. It also includes a large, 2-inch aperture for high collection-efficiency, ensuring high sensitivity on light-scattering surfaces.
