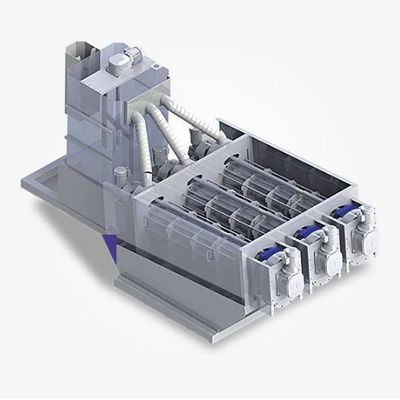

Multi-Disk Type Screw Press
Screw press (Multi-disk type) is being used most by businesses in the treatment of sludge. The device has high applicability in many factories, industrial parks and different industries, especially the ability to save costs on building wastewater treatment systems, which are already very complicated and expensive. We have decades of innovative research and developmental achievements of screw press in South Korea. ARK has brought to Vietnam the optimal solution for your business`s sludge and wastewater treatment since 2011. We have experience implementing many projects, which used many advanced and modern multi-disk screw presses, satisfied the demand of small and medium-sized enterprises to multinational corporations. ARK`s machines play a pivotal role in sludge and wastewater treatment projects.
Our screw presses work continuously, effectively on many projects, durable in different environments and suitable for many types of sludge with complex physicochemical properties. Not only serving the Vietnamese market, but ARK also serves many foreign business partners with slogan “Try before you trust”.
Technology: South Korea
Number of screws: 1 – 4
Materials: STS304, SUS316
Maximum capacity: 150 kgDS/hr
Sludge concentration: 0.6% – 3%
Features: convenient for cleaning, maintaining
Outstanding highlights: Compact, energy-saving
The screw-press is used in the final stage of the processing process and has been improved in many ways. Compact size requires a smaller installation space. The screw system is designed to resist wear. The sludge-polymer reaction tank has a smart structure and is more efficient than the older generation screw-presses.
The screw press made by ARK Vietnam includes a sludge-polymer reaction tank, which feeds the sludge to the body (screw). We provided two main types of products: RT and ST. They differ in the structure of the reaction tank.
The multi-disk screw press uses the pressure of the multi-disk system and the screw blades. The multi-disk system separates the water and the sludge.
The sludge-polymer reaction tank has a circular design, with overflow valves (anti-spill valve) and an agitator system. That smart mechanism is suitable for wastewater with sludge concentration below 1%. Firstly, the tank will concentrate sludge to a concentration of 2 - 3.5%. It ensures the screw could press sludge.
An integrated filter system inside the ST round tank could extract a large volume of water. The agitator system can adjust the speed depending on the type of sludge. The goal is to optimize the reaction to precipitate floc.
