Mücher Dichtungen - Model Genius -Multi-Flexible-Coupling

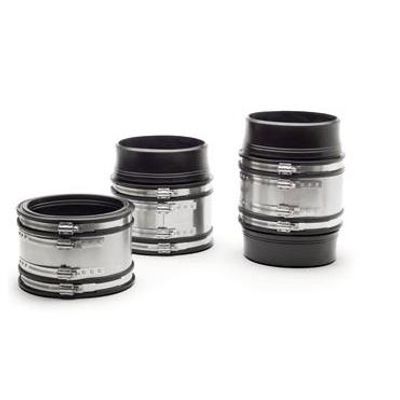

Multi-Flexible-Coupling GENIUS – for the connection of all pipe systems with different or same outside diameters. The Multi-Flexible-Coupling GENIUS with integrated bushes connects all plain ended pipes within one dimension and can be used inside and outside of buildings. The right solution always to hand: What ever pipe material needs to be jointed within one dimension, the GENIUS will always be the right solution for the contractor.
Most popular related searches
Mult-Flexible-Coupling GENIUS with integrated bushes connects all plain ended pipe materials within one dimension with different or same outside diameters.
- Manufacturer: MÜCHER DICHTUNGEN®, 50226 Frechen, T +49 2234 928 03-0, F -55
- Pressure Tightness: 2.5 bar wasser / - 0.3 bar vacuum
- Jetting Resistance: 120 bar
- Corrosion Resistance: TOX-Technology
- Sealing Material: EPDM or Nitrile (NBR) rubber with lock in place profile according to DIN EN 681-1
- Stainless Steel: AISI 304/1.4301, alternatively AISI 316/1.4404 according to DIN EN 10088-2
- Temperature Resistance: -40°C to +120°C, temporary max. temperature +160°C
- Standard/Approval: DIN EN 16397-2, CE15
