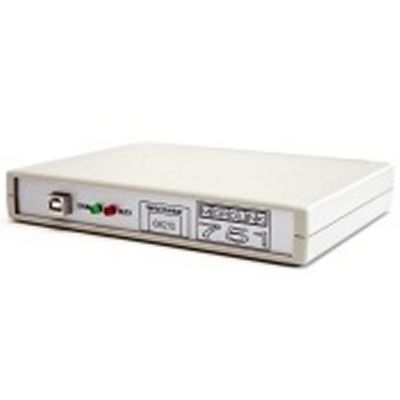

Biodata - Model Microlink 751 -Multi-Function Data Acquisition and Control USB
FromBiodata Ltd
The 751 provides 32 digital I/O lines, arranged in four groups of 8. Use Windmill to choose whether each group is an input or an output. You can read or set the state of each line individually, or switch several lines at the same time.
Most popular related searches
- Measure temperature, strain, pressure, voltage and current through 16 analogue input channels
- Switch up to 32 digital outputs
- Monitor up to 32 digital inputs
- Count events with up to 8 counters
- Chop, change and mix configurations
- Includes the powerful yet easy-to-use Windmill 7 Software for Windows: no programming required
- Powered from the PC
- Low power consumption
- Connect up to eight 751s to one PC, giving 128 analogue inputs and 256 digital inputs and outputs
- Choice of four analogue input ranges, selected with Windmill software individually for each channel
- Alternatively, choose automatic ranging and let the software match the input signal as closely as possible
- Integrating analogue-to-digital converter reduces electrical noise
- Use Windmill software to select the resolution of the A-D converter (from 12- to 18-bits): choose high throughput or high resolution
- Automatic recalibration
- Comprehensive User Manual
- Free technical support for life
- Money-back guarantee if not completely satisfied
