VOCSens
EnviCam - Model EnviCam-30 -Multi-Gas Microsensor
FromVOCSens
Main features: Multi-pixel, multi-gas measurement on a single chip. Small form factor (10 x 5 x 0.9 mm³). Ultra-low-power (< 50 µW @ 1 Hz measurement frequency). High selectivity. Self calibration algorithms (external container-based software). GPIO input and frequency output. C firmware library for external MCU.
Most popular related searches
multi-gas
nitrogen dioxide monitor
H2S/SO2
multi-gas monitoring
carbon monoxide monitor
nitrogen dioxide monitoring
CO2 monitoring
H2S monitoring
carbon monoxide monitoring
H2S
- Ammonia Monitoring (NH3) – 0.2 – 200 ppm
- Carbon Monoxide Monitoring (CO) – 1 – 2.000 ppm
- Nitrogen Dioxide Monitoring (NO2) – 25 ppb – 200 ppm
- Formaldehyde Monitoring (HCHO) – 0.1 – 20 ppm
- Acetaldehyde Monitoring (CH3CHO) – 0.1 – 20 ppm
- Methane Monitoring (CH4) – Available soon
- Carbon Dioxide Monitoring (CO2) – Available soon
- Hydrogen Sulfide Monitoring (H2S) – Available soon
- Extended measurement range and dedicated developments are available upon request
- Under development: BTEX, ethylene oxide (EtO), ethylene, hydrogen sulfide (SO2), hydrogen (H2) and acetone
Power consumption
< 50 µW @ 1 Hz
Power supply
VDD: 1.8 V
VDDIO: 1.8-3.3 V
Output
0.1 - 1000 kHz
Current ON
< 1 mA
Current OFF
< 10 µA

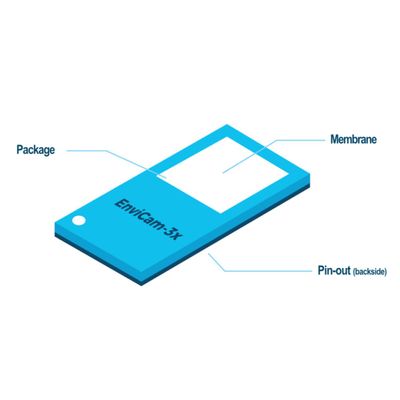

Package
LGA
10 x 5 x 0.9 mm³
