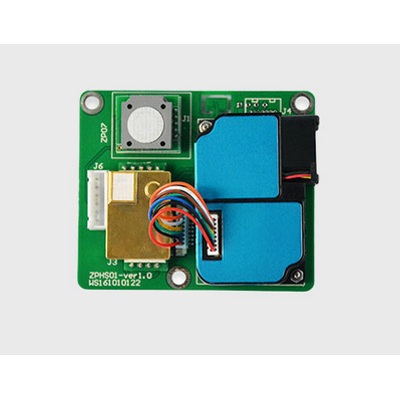

Winsen - Model ZPHS01 -Multi-in-One Sensor Module
This module integrates Electrochemical formaldehyde, Semiconductor VOC sensor, Laser particle sensor, NDIR CO2 sensor and temperature& humidity sensor. Communication Interface: TTL serial, Baud rate:9600, data bits:8, stop bit:1, check bit: no.
Most popular related searches
laser particle sensor
air quality monitoring
temperature and humidity sensor
NDIR CO2 sensor
CO2 and temperature sensor
air quality monitoring system
air conditioner
particle sensor
VOC sensor
HVAC system
- Gas detector
- Air conditioner
- Air quality monitoring
- Air purifier
- HVAC system
- Smart home
- Model: ZPHS01
- Target Gas: CO2?PM2.5?CH2O?TVOC?Temperature?Humidity
- Interference gas: Alcohol/CO gas…etc.
- Working voltage: 5V (DC)
- Average Current: <200 mA
- Interface level: 3 V(compatible with 3.3V)
- Output signal: UART
- Preheat time: ≤ 3min
- CO2 range: 0~5000ppm
- PM2.5 range: 0~1000ug/m3
- CH2O range: 0~1.6ppm
- TVOC range: 4 grades
- Tem. range: 0~65?
- Tem. precision: ±0.5?
- Hum. range: 0~100% RH
- Hum. precision: ±3%
- Working Tem.: 0~50?
- Working Hum.: 15~80% RH(no condensation)
- Storage Tem.: 0~50?
- Storage Hum.: 0~60% RH
- Size: 72mmx61mm
