Toshcon - Multi-Parameter Probes

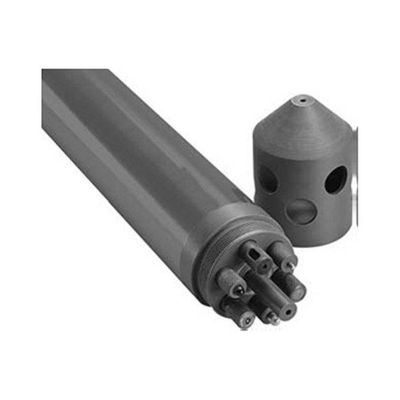

SA 8060.104

Model with 6 sensors: Depth, Temperature, E.Conductivity, pH,

ORP, D. Oxygen.

Max depth 350 m, data logger and internal battery.

• Date : DD-MM-YY (only SA8060.10x)
• Hour : hh-mm-ss (only SA8060.10x)
• Level : 0/20.000 m. - 0/350.00 m. max.
• Temperature -5.00/+55.00 °C
• Conductivity
• 0/6.000 mS autorange
• 0/60.000 mS
• Temperature Coefficient 0/3.50 %/°C
• Reference Temperature 10/30 °C
• pH : 0/14.000 pH
• Redox : ± 1100.0 mV
• Dissolved Oxygen
• 0/200.00 mmHg
• 0/200.00 %air
• 0/20.000 PPM
• 0/20.000 mg/l
• Secondary parameters:
• Pressure : 500/800 mmHg
• Salinity : 0/60.000 PPM
• Relative Humidity 0/100 %
• Identification of probe 0 / 32
• Programmable acquisition Time interval (Stand alone) Level interval
• Power supply 2.7/4.8 Vdc
• external 12 Vdc 30 mA max
• Internal batteries Ni/Cd rechargeable 1800 mAh
• Interface serial RS485 or RS232 D
• Operating Pressure 30 bar max.
• Material : PVC/AISI 316
• Length : 510 mm
• Diameter : 70 mm max.
• Weight : 2 Kg max.
• Connector IP 68 - 100 bar oceanographic
• Option : MODBUS protocol
