Toshniwal Instruments (Madras) Pvt. Ltd.

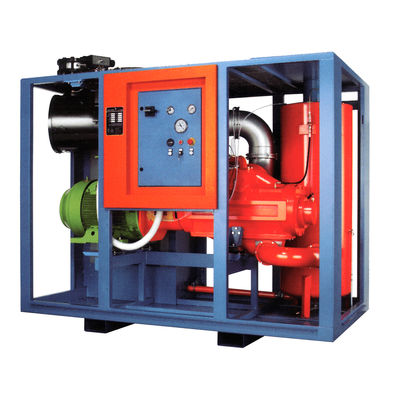

Multi-Vane Vacuum Pumps
The Multi-Vane Vacuum pumps are single-stage, heavy-duty rotary vane vacuum pumps of high pumping capacity. The pump’s high capacity, coupled with its ability to handle harsh environmental conditions make it suitable for a Central Vacuum System applications.
Most popular related searches
vacuum pump
rotary vane vacuum pump
rotary vane pump
closed loop lubrication
air cooling system
digital temperature controller
coolant separation
clean air
cooling system
cooling water
- Pumping Capacity Range: 250 m<sup>3</sup>/hr to 3240 m<sup>3</sup>/hr
- Ultimate Pressure: 0.5 mbar
- High pumping speed over operating pressure range (450 mbar – 0.5 mbar)
- Very high water vapor tolerance by ensuring high operating temperatures
- Air cooling system through an aluminum radiator and electric fan thermostat for operating without cooling water
- No coolant consumption thanks to the closed-loop lubrication circuit and high efficiency separation element
- Durability and efficiency guarantee by the special aluminum alloy vanes that ensure constant performances even after tens of thousands of hours of operation
- Limited footprint thanks to the compact layout designed to minimize the space needs
- Fully automatic operation: intake valve regulated by safety vacuum switch, coolant temperature control, thermostat and auxiliary control switches
- Coolant separator and recovery for clean air exhaust without treatment
- Control panel complete with main power switch, easy to operate
The UV vacuum pumps are operating in a variety of industrial processes where they can handle massive workloads at constant speed, 24/7, ensuring high reliability even in harsh environments with ambient temperatures up to 50°C.
- Glass Forming
- Drying and Degassing
- Thermoforming
- Extrusion
- Ceramics, Bricks and Tiles
- Metal and Plastic forming
- Pick & Place
- Surface Coating
- Electrical winding
