Microchip - Model AVR64DD28 -Multi-Voltage I/O Microcontroller

The family uses the latest Core Independent Peripherals with low-power features and 5V operation for increased noise immunity. The Multi-Voltage I/O system allows safe bi-directional communication with systems running at a different voltage. The Event System, Configurable Custom Logic (CCL), along with intelligent analog peripherals, like 12-bit differential ADC, Zero-Cross Detect (ZCD), 10-bit DAC together with the MVIO makes the AVR® DD family well suited for sensor applications, IoT end nodes, and other applications where signal conditioning or level-shifting is needed.

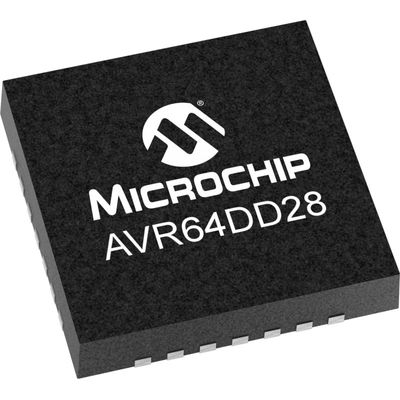

AVR64DD28
The AVR64DD28 will be available in TQFP and VQFN package options running at up to 24 MHz and with 64 KB Flash, 8 KB SRAM, and 256B of EEPROM.
The AVR64DD28 product supports four Multi-Voltage I/O channels capable of bi-directional communication with external devices running at a higher or lower voltage than the MCU itself. The MVIO system makes the AVR® DD a perfect device for board control, sensor applications, IoT end nodes, and other size constrained applications, and for sensor fusion in larger systems.

Functional Safety:
This product is recommended for safety-critical applications targeting industrial and automotive products (IEC 61508 and ISO 26262). Necessary documentation, such as the FMEDA report and a Safety Manual, can be provided on request. Certified development tools are also available for this product. Contact your local Microchip sales office or your distributor for more information.

Functional Safety
• IEC 60730 Class B library (UL certified)
• ISO 26262 FMEDA
• ISO 26262 Safety Manual

High-Performance AVR RISC CPU with Hardware Multiplier
• Running up to 24 MHz
• External High-Frequency Oscillator
• Single Cycle I/O Access
• Two-level Interrupt Controller
• Sleep Modes: Idle, Standby, Power-down
• Multi-Voltage I/O (MVIO)
• Event System (EVSYS)
• Configurable Custom Logic (CCL)
• Single pin programming and debugging interface (UPDI)

Analog Features
• 12-bit Differential Analog-to-Digital Converter (ADC)
• 10-bit Digital-to-Analog Converter (DAC) with Output Buffer
• Zero-Cross Detector (ZCD)
• Analog Comparator

Timer/Counters
• Timer/Counter type A (TCA)
• Timer/Counter type B (TCB)
• Timer/Counter type D (TCD) for control applications

Communication
• Serial communication interfaces: USART, SPI, I2C

Built-in Safety Functions:
• Clock Failure Detection (CFD)
• Power-On Reset (POR)
• Brown-Out-Detection (BOD)
• Voltage Level Monitor (VLM)
• Cyclic Redundancy Check (CRC) Scan
• Window Watchdog Timer with Window Mode (WWDT)

Program Memory Type: Flash
Program Memory Size (KB): 64
CPU Speed (MIPS/DMIPS): 24
Data EEPROM (bytes): 256
Timers: 0 x 8-bit - 3 x 16-bit
Stand alone PWM: 6
Number of ADCs: 1
Diff ADC Inputs: Yes
ADC Channels: 19
Max ADC Resolution (bits): 12
Number of Comparators: 1
Temp. Range Min.: -40
Temp. Range Max.: 125
Operation Voltage Max.(V): 5.5
Operation Voltage Min.(V): 1.8
Pin Count: 28
Low Power: Yes
I2C: 1 -I2C
