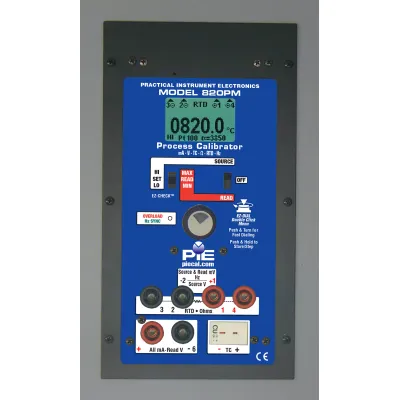

PIE - Model 820PM -Multifunction Panel Mount Calibrator
The PIE 820PM Multifunction Panel Mount Calibrator is designed for precise simulation and measurement tasks in various industrial environments. This calibrator is engineered to support a broad range of process control signals including voltage, current, thermocouple, RTD, frequency, and pressure. It is equipped with intuitive interface controls that streamline operations and allow seamless integration into test benches and control panels. The device's robust construction ensures durability in challenging environments, making it suited for both laboratory settings and fieldwork. The 820PM model provides highly accurate outputs and measurements, encompassing several functions in a single unit to enhance efficiency and functionality in calibration tasks. It also features expandable input and output configurations to cater to diverse technical requirements. This makes it a versatile tool for technicians and engineers aiming to maintain precise calibration of instruments.
- Calibrate milliamps and voltage
Source 0.00 to 24.00 mA, 0.00 to 10.25 VDC and 0.00 to 80.00 mV
Read to 24.00 mA, 00.00 to 10.,25 VDC, 0.0 to 60.0 VDC, 00.00 to 80.00 mV
Simulate 2 Wire transmitters
Power up transmitters and loops with built in 24 V power supply
Simplify HART hook ups with built in 250 ohm resistor - Calibrate directly in temperature (°C & °F)
Thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II)
RTD types Pt 100 Ohm (3850, 3902, 3916, 3926) & 1000 Ohm (3850)
Copper 10 & 50 Ohm, Nickel 110 and 120 Ohm
Resistance up to 4010 ohms - Checkout flow and vibration systems
Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99
Hz, 9999.9 Hz, 20.000 kHz
- Technician friendly operation
Intuitive EZ-DIAL double click menu makes it easier to setup than other multifunction calibrators. Uses the same menus as our hand held models - Quickly set any three outputs plus automatic stepping & ramping
Set any value quickly with the adjustable EZ-DIAL; store any three output settings for instant recall with the EZ-CHECK™ switch
Choose between 2, 3, 5 & 11 steps to automatically increment the output in 100%, 50%, 25% or 10% of span
Select RAMP to smoothly increase and decrease the output between Zero and Span
Set step/ramp time to match your system from 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 and 60 seconds - Easily recall stored values
Use the EZ-CHECK™ switch to recall the HI and LO values automatically stored when in READ mode
Included with each unit
- Rugged painted aluminum mounting plate with mounting screws
- 110/120V AC adapter
- 3 year warranty
- NIST calibration certificate
- Weight : 4 lbs
- Dimensions : 8.75 × 4.75 × 2 in
