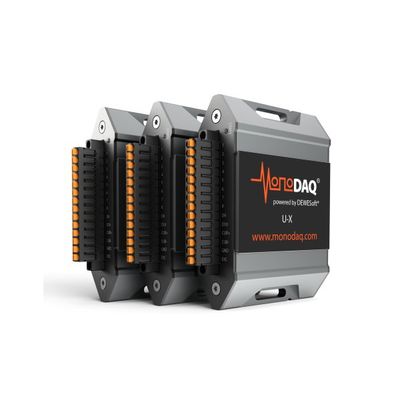

MonoDAQ-U-X - Model USB DAQ -Multifunctional USB Data Acquisition Device

SHARE

The Best Price-Performance Multifunctional Usb Data Acquisition (Usb Daq) Device On The Market; configurable front end for any kind of sensors
fully isolated USB (signal + power). 16 bit @50 kS/s. powerful DEWESoft software for PC. cross-platform IDM software for embedded integrations.

Most popular related searches
data acquisition system
data acquisition software
strain gauge
humidity sensor
thermocouple
gyroscope

The same hardware can be reconfigured into a 1-channel strain gauge amplifier, 4-channel thermocouple interface or 8-channel voltage input with a single click of a button in DEWESoft data acquisition software. Analog and digital I/O’s coupled with Python API’s enable MonoDAQ-U-X USB Data Acquisition device (USB DAQ) to be used in basic control & automation applications. That is why our customers call it a true Data Acquisition (DAQ) Chameleon.

  • Power and signal isolation between USB and front end
  • Max. sample rate: 50 kS/s, resolution: 16 bit
  • Can connect up to 4 full bridge strain gauges or up to 4 thermocouples
  • Max. 4 differential or 8 single ended voltage inputs
  • Current input with internal shunt (0.5 ohm, 1k ohm)
  • Analog output (0-4V, 12bit)
  • Max. 8 digital inputs or outputs
  • 1 wire, I2C and UART interface on front connector
  • Internal humidity sensor
  • Internal IMU (3-axial acceletometer and 3-axial gyroscope)
