Schleuniger - Model Strip Series B340 -Multilayer Wire Stripping Machine

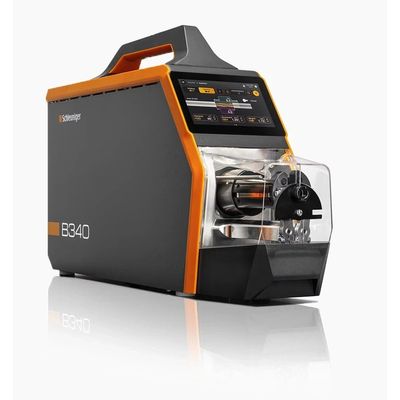

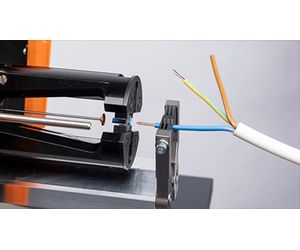

The Strip Series B340 strips simple stranded wires and multiconductor cables with a cross section from 0.013 to 16 mm² (36 – 5 AWG) and a diameter of up to 9 mm (0.35”). The programmable Strip Series B340 features four rotary X-shaped blades, capable of processing cables with thin jacketing and demanding materials like Kapton, Teflon®, or textile glass braiding. It offers a strip length of 80 mm (3.15”) and a pull-off length of 40 mm (1.57”). No blade or clamp changes are needed across all cable applications, reducing machine downtimes. It also supports defined conductor twisting and sequential processing of multi-conductor cables, including jacket and inner conductor stripping in a programmable sequence.The B340 is quick to set up, user-friendly without programming knowledge, and can be integrated into fully automated systems, such as transfer modules.
Repeat Accuracy, Mechanical Precision, and Short Work Cycles
The Strip Series B340 ensures high productivity with accurate stripping results. No mechanical adjustments or blade changes are necessary when changing the cable.

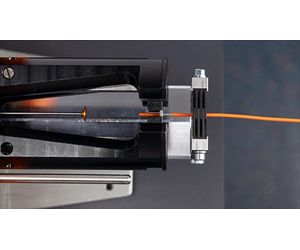

The B340, equipped with four X-shaped blades, slits the insulation concentrically to the conductor and cuts completely and cleanly with precision.

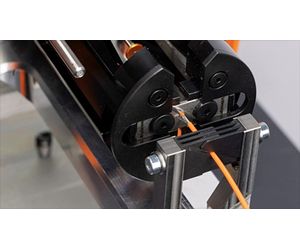

Cable guidance for all cable types is ensured with universally applicable clamping jaws that feed the cable concentrically to the rotary axis into the semi-automatic stripper.
Strip Series B340
Metric
- Options: Foot pedal, Air jet, extraction, Automation Interface, Short breakout length kit
- Wire outer diameter min.: 0.25 mm
- Wire outer diameter max.: 9 mm
- Number of entries in the article library: virtually unlimited
- Strip length min.: 0.1 mm
- Strip length max.: 80 mm
- Increment of strip length: 0.1 mm
- Pull-off length min.: 0.1 mm
- Pull-off length max.: 40 mm
- Break-out length min.: 15.7 mm
- Insulation material: PUR, rubber, Teflon, Tefzel, Kapton, etc.
- Blade: 4 blades, rotative, straight
- Incision diameter increment: 0.01 mm
- Wire cross section min.: 0.013 mm²
- Wire cross section max.: 16 mm²
- Gripping force: programmable
- Piece output max.: 1200 pcs/h
- Noise level: <57 dB
- Electrical connection: 100 V AC to 240 V AC, 50/60 Hz
- Compressed-air connection: 4-6 bar
- Compressed-air quality: Dry, filtered (10 μm), oil-free
- Weight: 12 kg
- Dimensions/length: 521 mm
- Dimensions/width: 132 mm
- Dimensions/height: 317 mm
- Temperature operation: 10 - 40 °C
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Cycle time: 2.3 sec
- Cycle time depending on: depending on cross-section, strip length and pull-off length
- Data interface: Foot pedal, USB, Ethernet, Automation Interface (Option)
- User interface: 5" color touch panel
- Trigger: Automatic trigger sensor, touchscreen, foot panel
- CE conformity: The B340 fully complies with the CE and EMC machinery directives relating to mechanical and electrical safety and electromagnetic compatibility, as well as UKCA, UL, and CSA
Imperial
- Options: Foot pedal, Air jet, extraction, Automation Interface, Short breakout length kit
- Wire outer diameter min.: 0.001 in
- Wire outer diameter max.: 0.35 in
- Number of entries in the article library: virtually unlimited
- Strip length min.: 0.004 in
- Strip length max.: 3.15 in
- Increment of strip length: 0.004 in
- Pull-off length min.: 0.004 in
- Pull-off length max.: 1.57 in
- Break-out length min.: 0.62 in
- Insulation material: PUR, rubber, Teflon, Tefzel, Kapton, etc.
- Blade: 4 blades, rotative, straight
- Incision diameter increment: 0.0004 in
- Wire cross section min.: AWG36
- Wire cross section max.: AWG5
- Gripping force: programmable
- Piece output max.: 1200 pcs/h
- Noise level: <57 dB
- Electrical connection: 100 V AC to 240 V AC, 50/60 Hz
- Compressed-air connection: 60 - 90 psi
- Compressed-air quality: Dry, filtered (10 μm), oil-free
- Weight: 26 lb
- Dimensions/length: 20.51 in
- Dimensions/width: 5.19 in
- Dimensions/height: 12.48 in
- Temperature operation: 50 - 104 °F
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Cycle time: 2.3 sec
- Cycle time depending on: depending on cross-section, strip length and pull-off length
- Data interface: Foot pedal, USB, Ethernet, Automation Interface (Option)
- User interface: 5" color touch panel
- Trigger: Automatic trigger sensor, touchscreen, foot panel
- CE conformity: The B340 fully complies with the CE and EMC machinery directives relating to mechanical and electrical safety and electromagnetic compatibility, as well as UKCA, UL, and CSA
