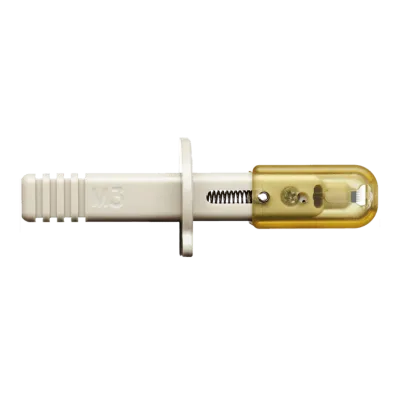

Newomics - Model M3 -Multinozzle Emitters
FromNewomics, Inc.
The M3 emitter has multiple nozzles working together to split a single microflow stream evenly into multiple nanoflows, thereby dramatically enhancing the ionization efficiency to achieve unprecedented sensitivity, robustness, and throughput.
Most popular related searches
- Extremely sensitive, over 10 fold sensitivity gain
- Robust, clog-resistance
- Ease of use, plug-and-play operation
- Different emitter sizes available from 5 μm ID to 30 μm ID
- A wide range of flow rates from nano to microflows
- Interfaced to diverse mass spectrometers
- Reusable
- Catalog # : E8N10MU01
- Nozzles : 8
- Inner Diameter (ID) of Nozzle : 10 µm
- Outer Diameter (OD) of Nozzle : 20 µm
- Internal Swept Volume : 10 nL
- Flow Rate : 1 - 10 µL/min
Parameter : Specifications
- Catalog # : E8N20MU01
- Nozzles : 8
- Inner Diameter (ID) of Nozzle : 20 µm
- Outer Diameter (OD) of Nozzle : 30 µm
- Internal Swept Volume : 14 nL
- Flow Rate : 10 - 40 µL/min
Parameter : Specifications
- Catalog # : E5N20MU01
- Nozzles : 5
- Inner Diameter (ID) of Nozzle : 20 µm
- Outer Diameter (OD) of Nozzle : 30 µm
- Internal Swept Volume : 12 nL
- Flow Rate : 5 - 20 µL/min
Parameter : Specifications
- Catalog # : E5N10MU01
- Nozzles : 5
- Inner Diameter (ID) of Nozzle : 10 µm
- Outer Diameter (OD) of Nozzle : 20 µm
- Internal Swept Volume : 10 nL
- Flow Rate : 0.5 - 2.5 µL/min
